SPECIFICATIONS

Air Fuel Ratio Gauge: 20:1~10:1

Boost Gauge Bar: -1~2Bar

Boost Gauge PSI: -30~30PSI

Brand Name: DRAGON GAUGE

Exhaust Temperature Gauge: 3~13*100℃

High-concerned chemical: None

Interchange Part Number: Car Gauge

Item Height: 53mm

Item Length: 58mm

Item Weight: 0.4kg

Item Width: 52mm

Manufacturer Part Number: 636

Material: Metal+Plastic

Number Of Cylinders: 1-8

Oil Pressure Gauge: 0~100PSI

Oil Temperature Gauge: 40~140℃

Origin: Null Null

Placement on Vehicle: Front

Special Features: Measure and display various data of the car

Tachometer: 0~10*1000RPM

Voltmeter: 8~18V

Water Temperature Gauge: 40~140℃

52mm Tachometer PRM Boost Gauge Water Temp Oil Temp Oil Press Voltmeter EGT Gauge AFR Gauge 7 Colors LED Dual Display Car Gauge

Feature:

1.High speed Stepper motor with a quick response !!（Please check the video in product page）

2.With alarm function, the alarm backlight will flash red light.

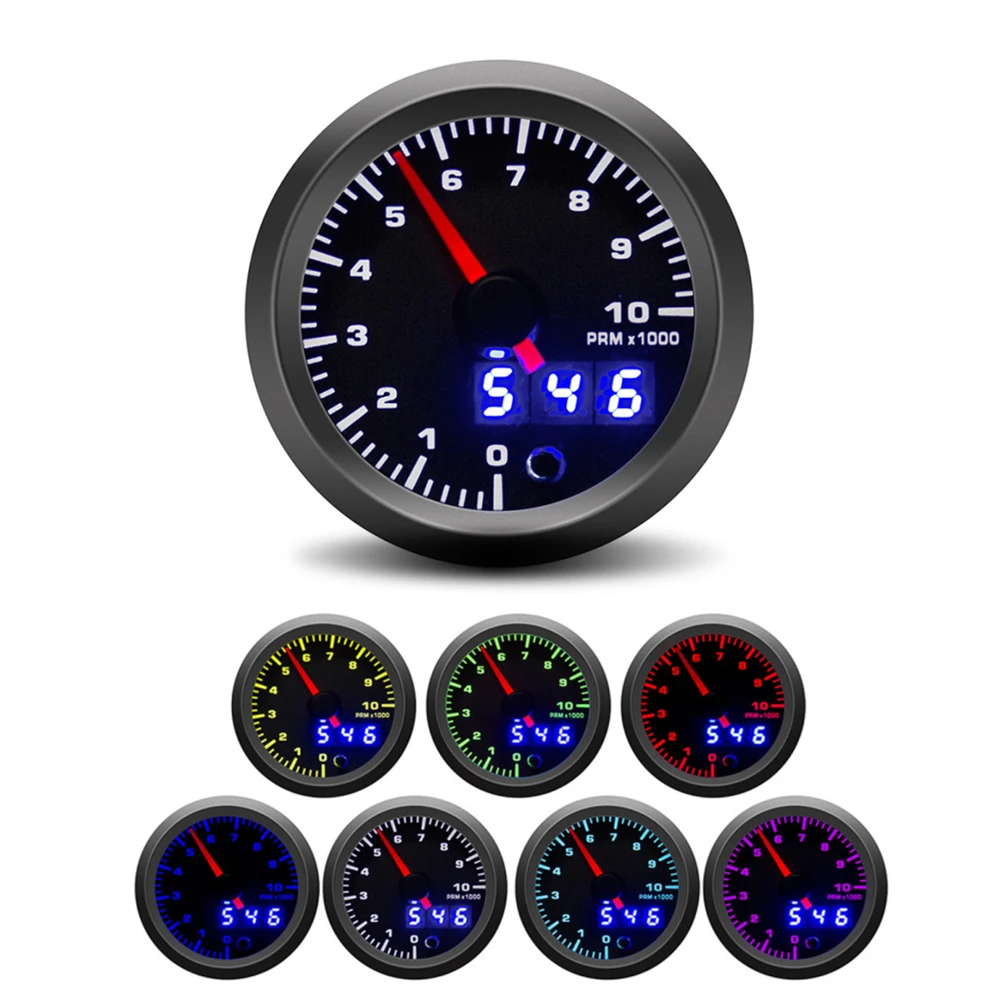

3.Clear and bright Adjustable 7 colors Led backlight with digital display!

4.The button on the lens can switch the color of light you want. （Please check the video in product page）

Boost gauge, water temperature gauge, oil temperature gauge, oil pressure gauge, exhaust temperature gauge，with sensor.(Note: Air-fuel ratio guage without sensor, needs to be purchased separately.Suitable for narrow band oxygen sensors only.)

The sensor thread size is 1/8ZG.

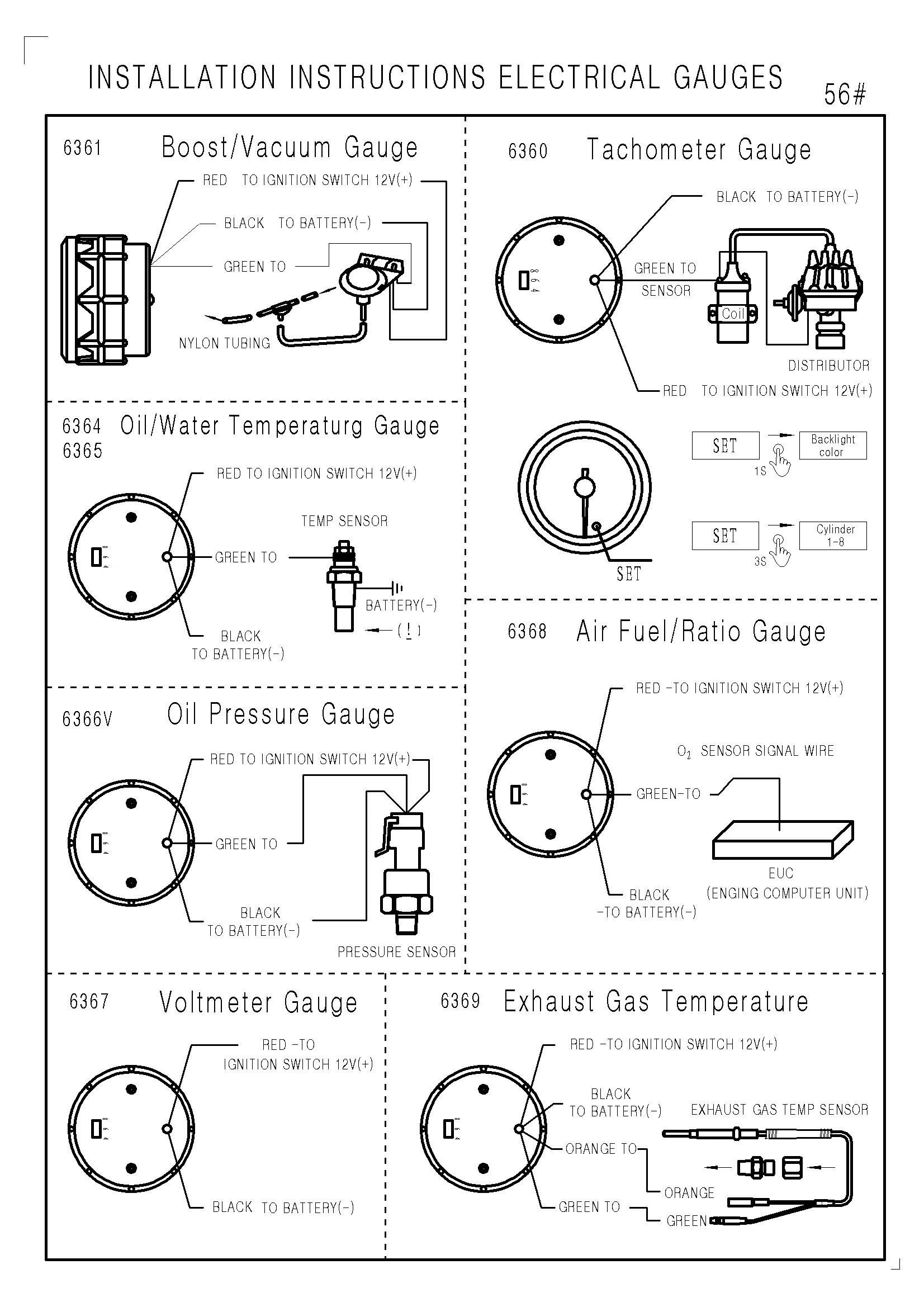

The goods include installation instructions in English,digital pointer dual display, high-end racing grade gauge.

Tachometer:0~10x1000RPM

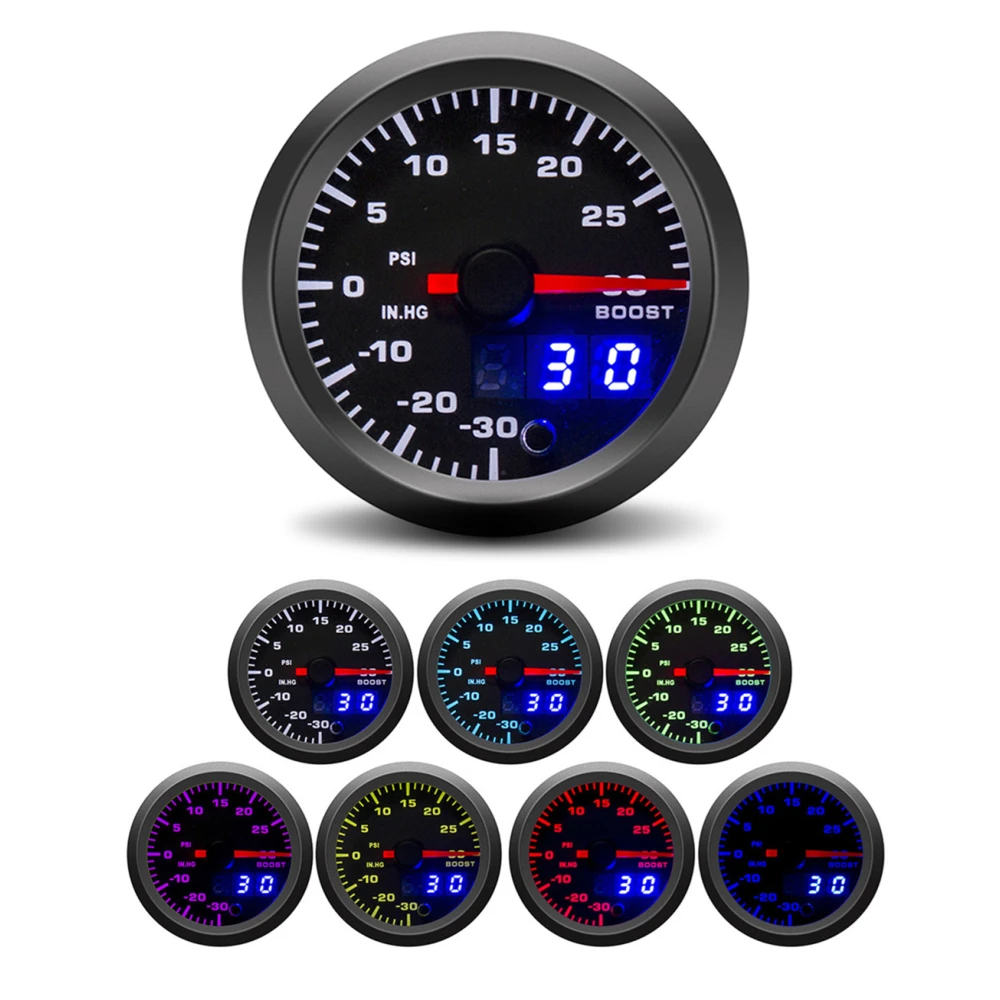

Boost Gauge PSI: -30~30PSI

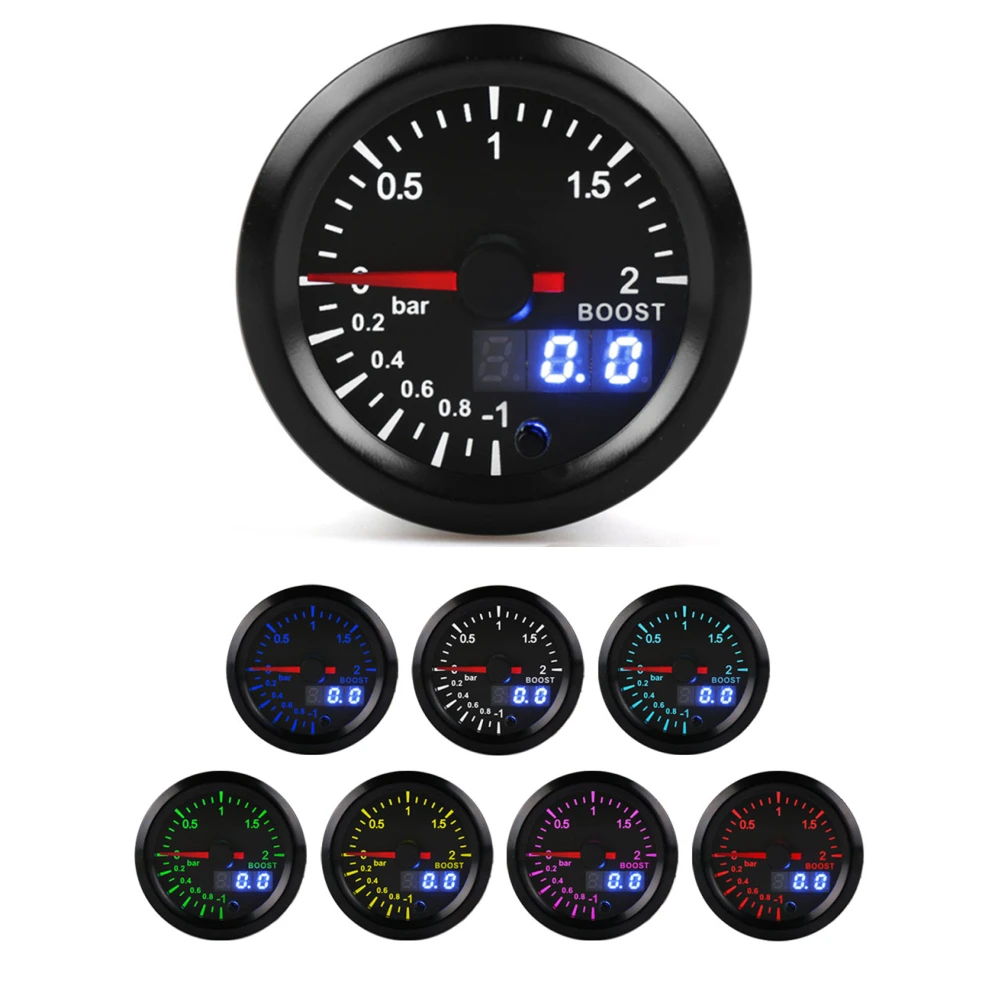

Boost Gauge Bar:-1~2Bar

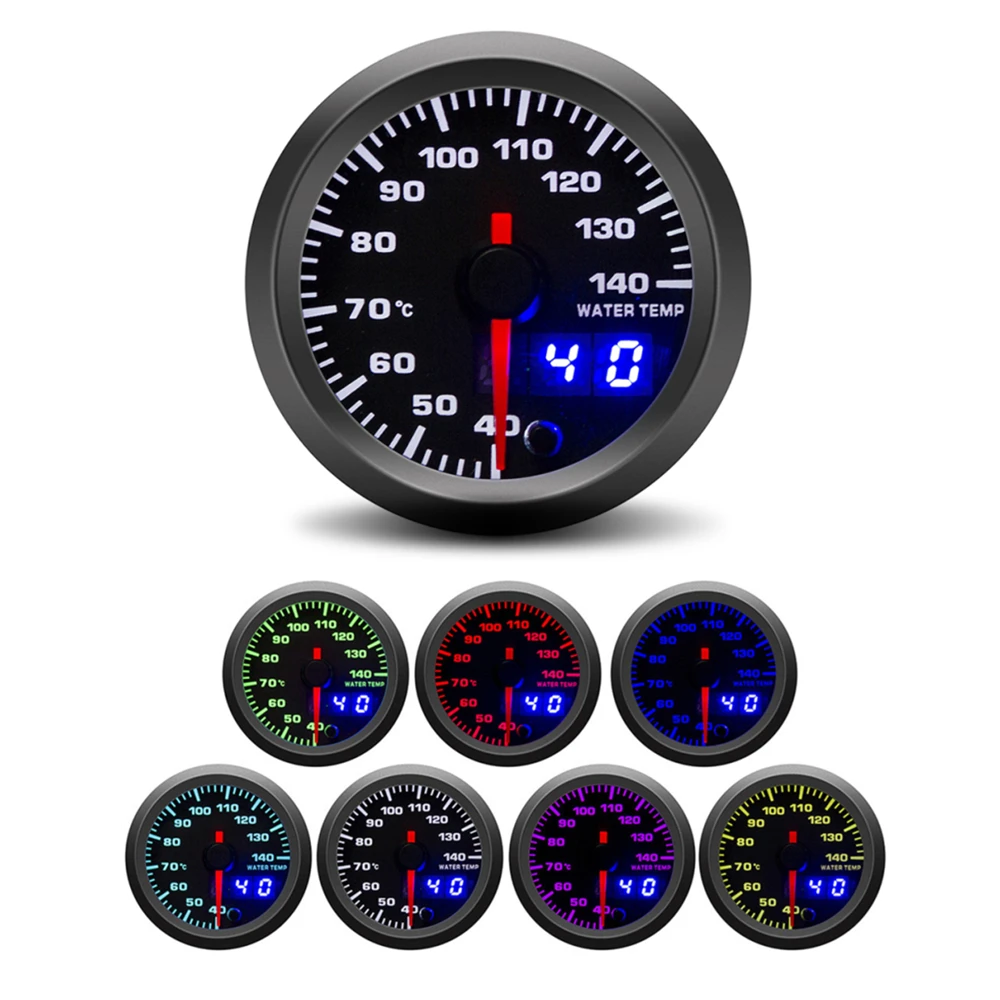

Water Temperature Gauge: 40~140℃

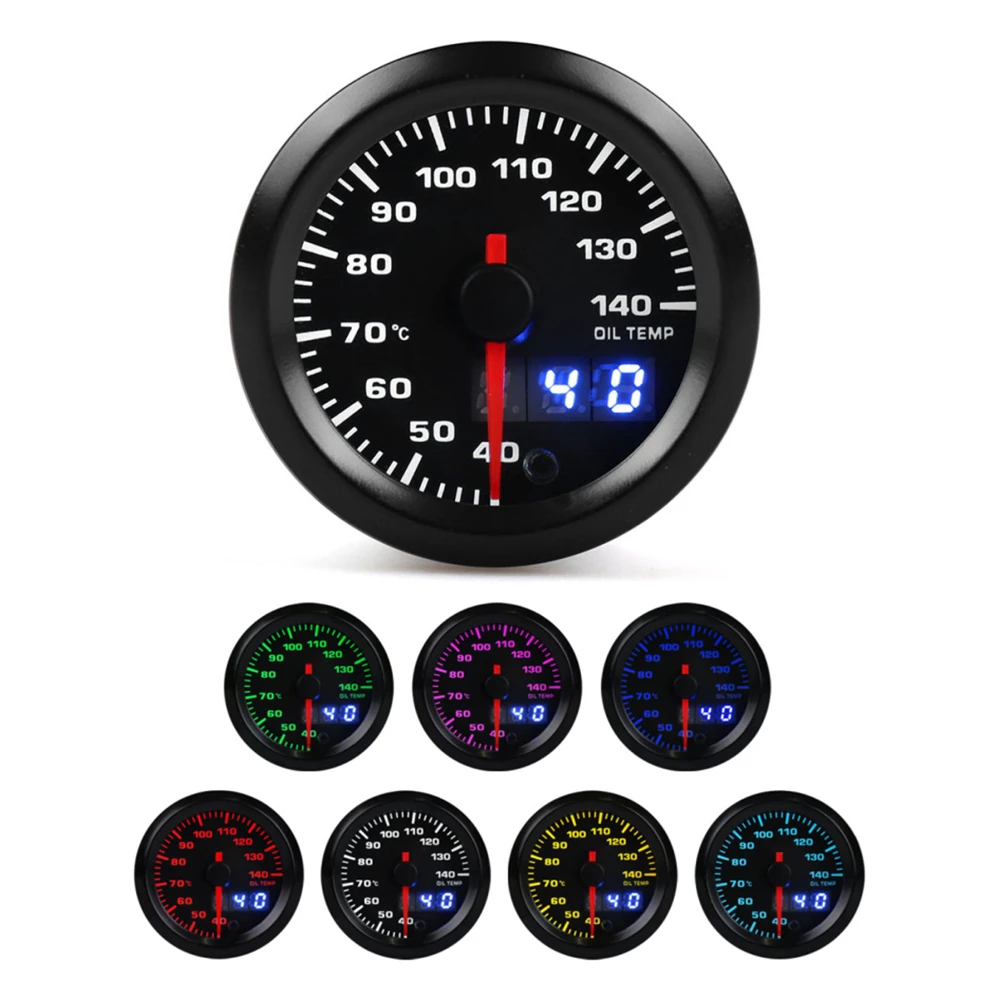

Oil Temperature Gauge: 40~140℃

Oil Pressure Gauge: 0~100PSI

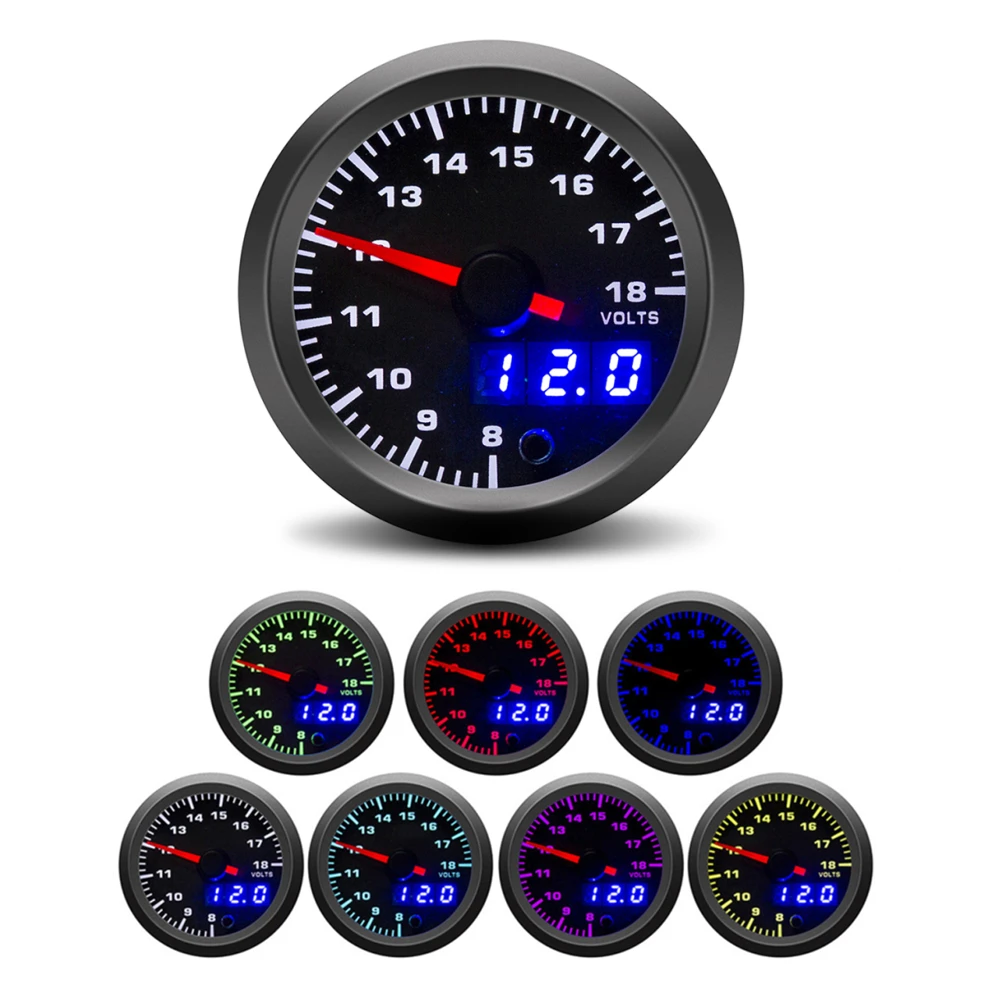

Voltmeter: 8~18V

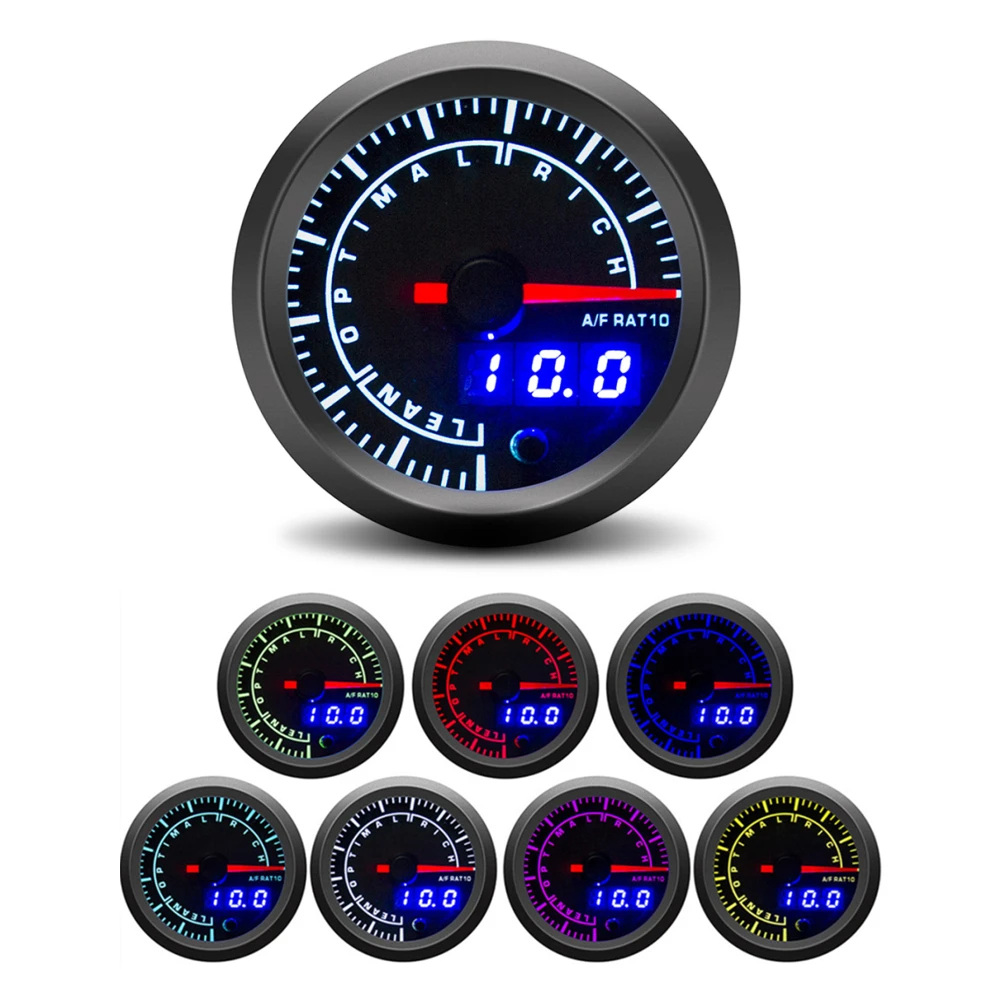

Air Fuel Ratio Gauge: 20:1~10:1

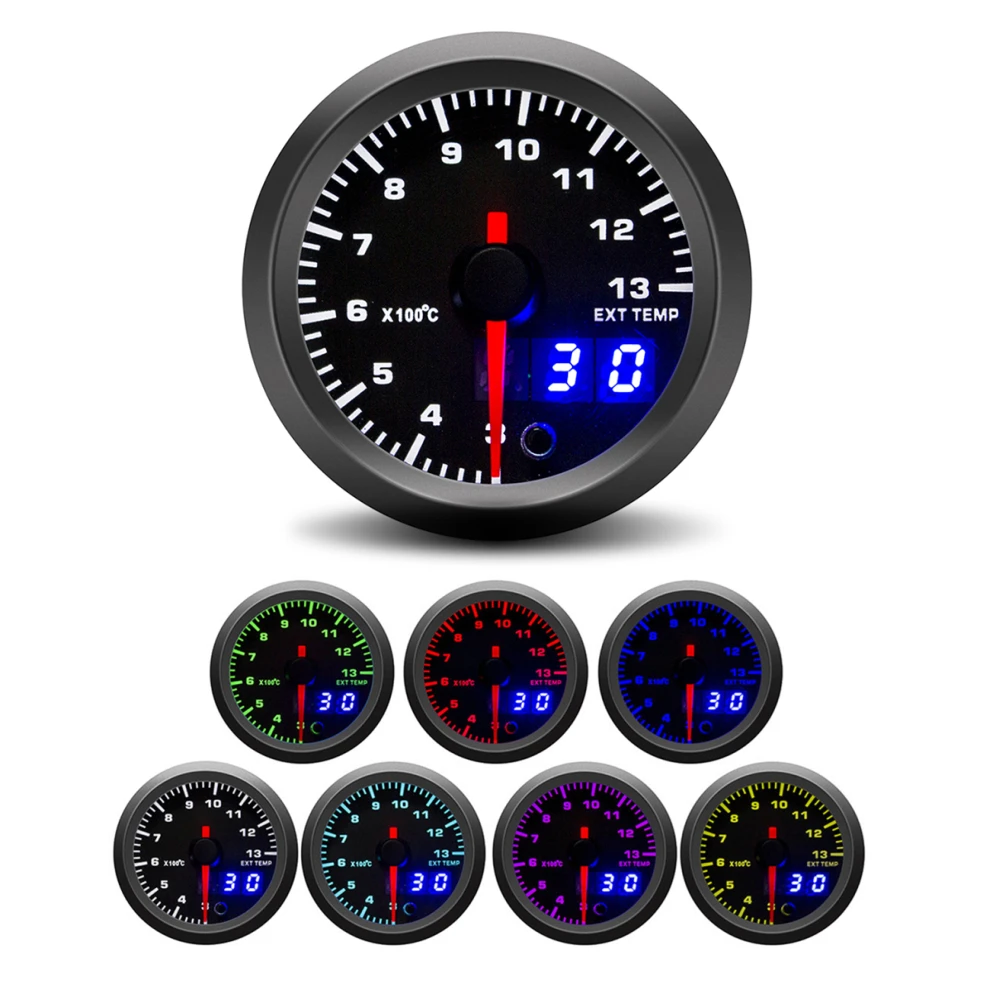

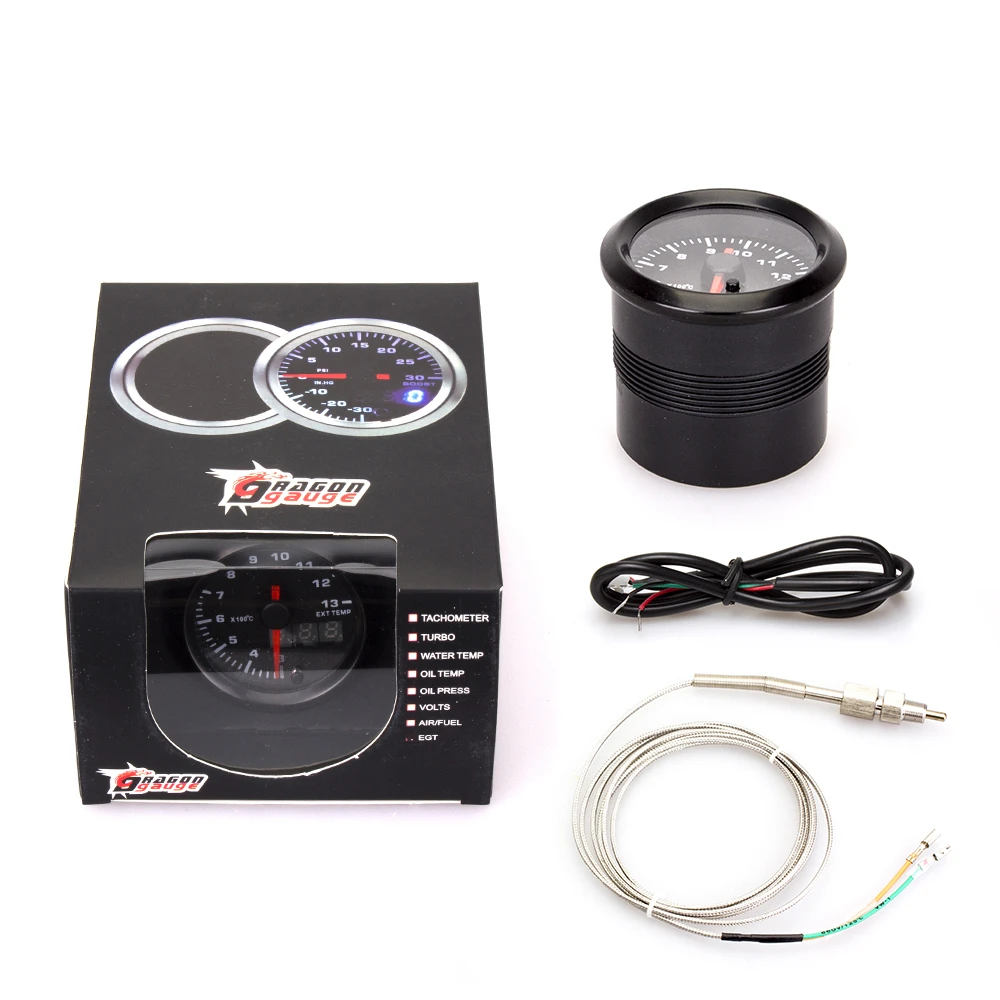

Exhaust Temperature Gauge：3~13×100℃

Note:

After receiving the gauge, the pointer display is not 0 is normal, power on the normal use.

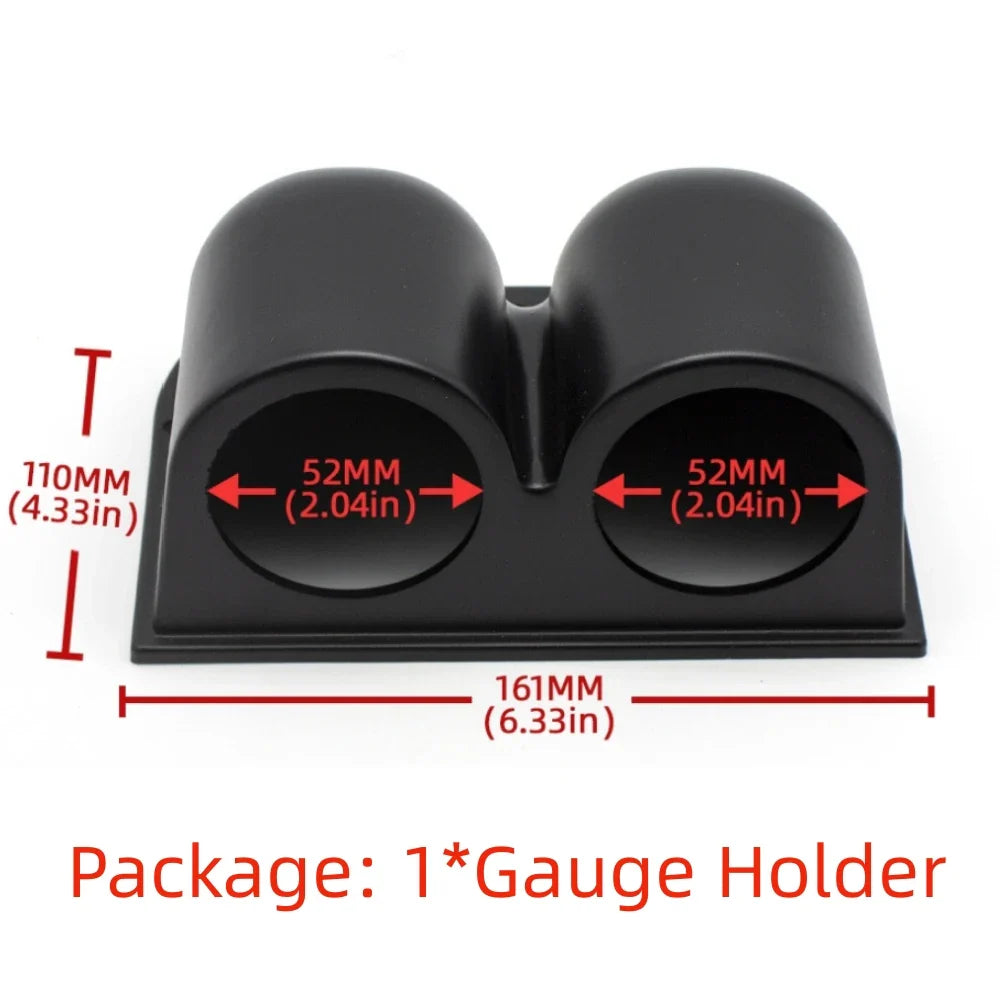

There are gauges and gauge stand to choose from, do not buy the wrong.

Fitment:

It is suitable for 12 volt gasoline vehicles（tachometer is suitable for 1~8 cylinder cars）

Item Picture

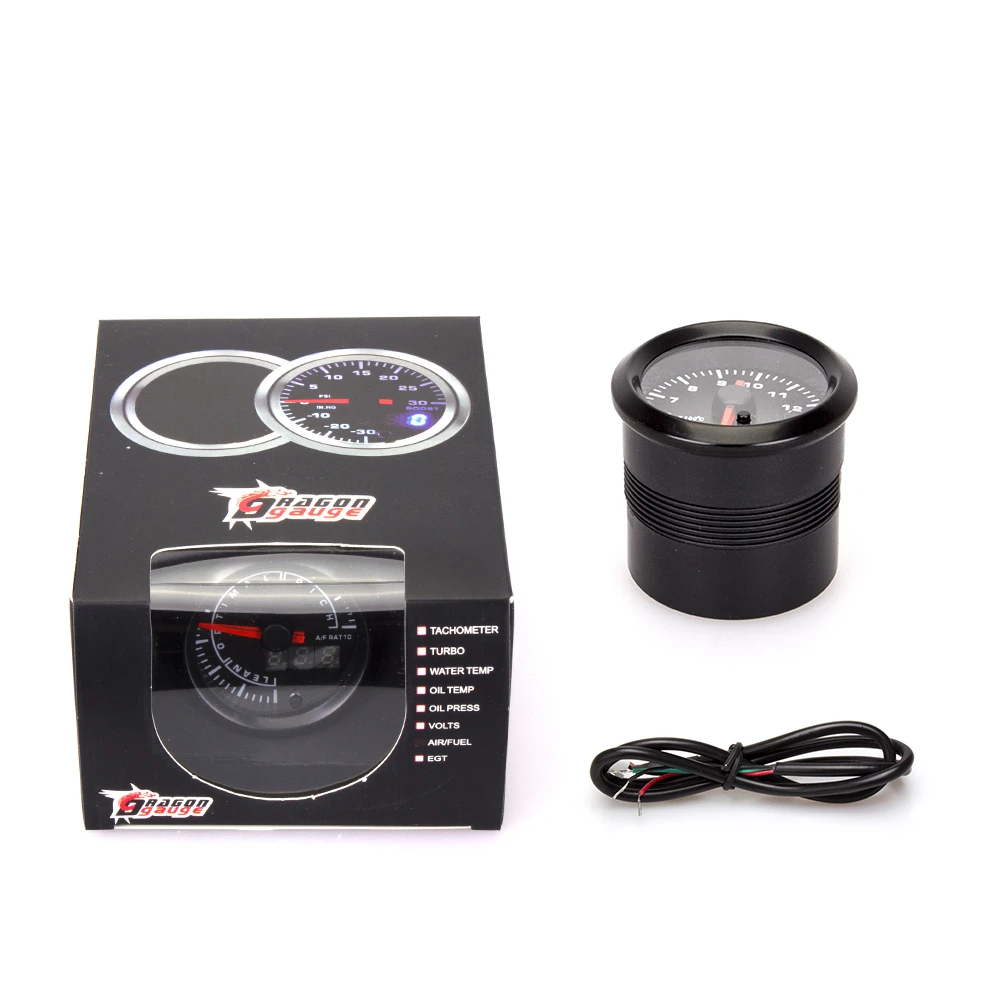

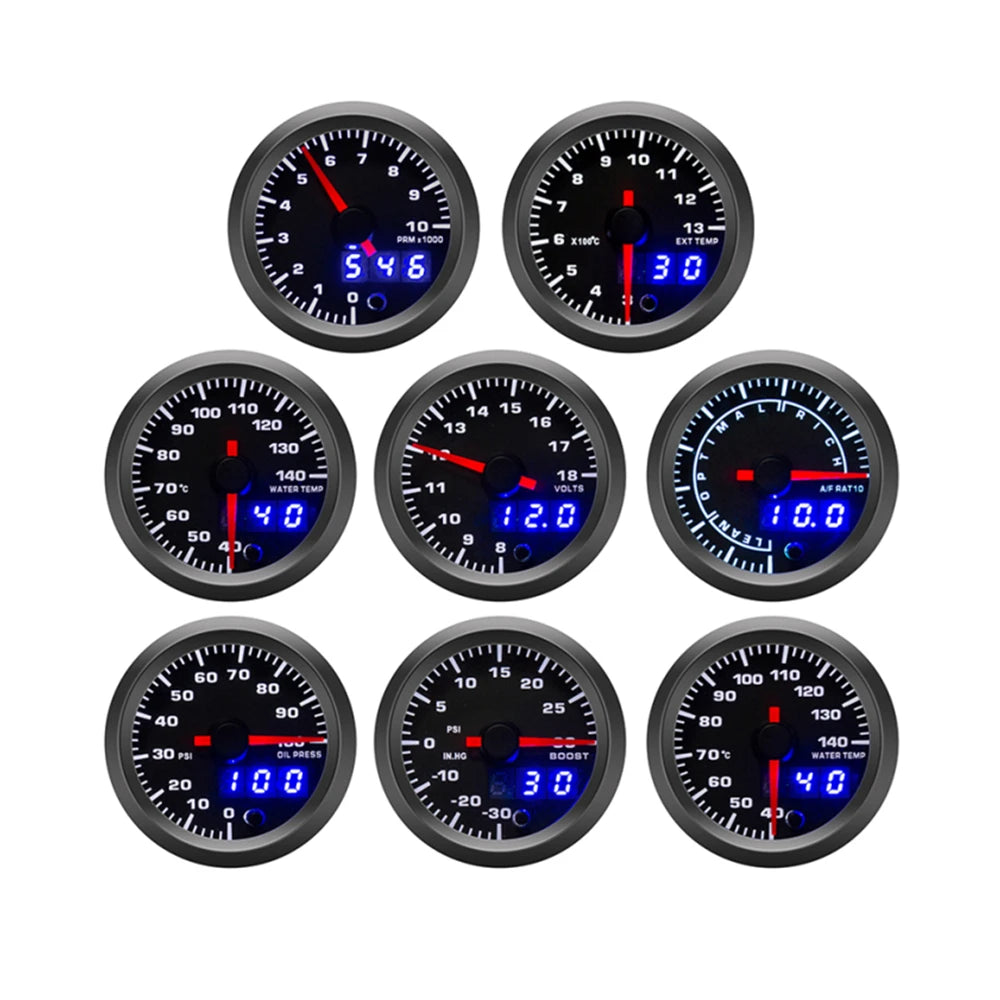

Package include(Please check pictures below):

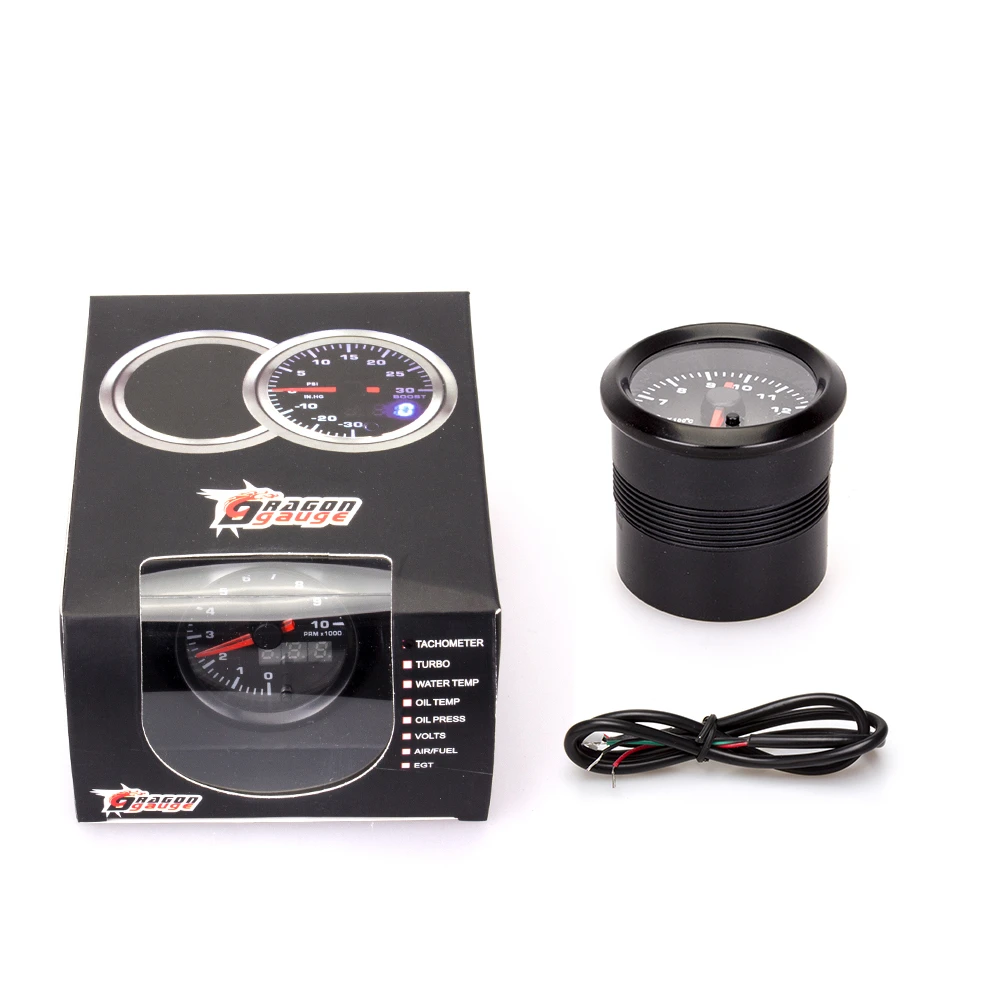

Tachometer

Boost Gauge (PSI or Bar)

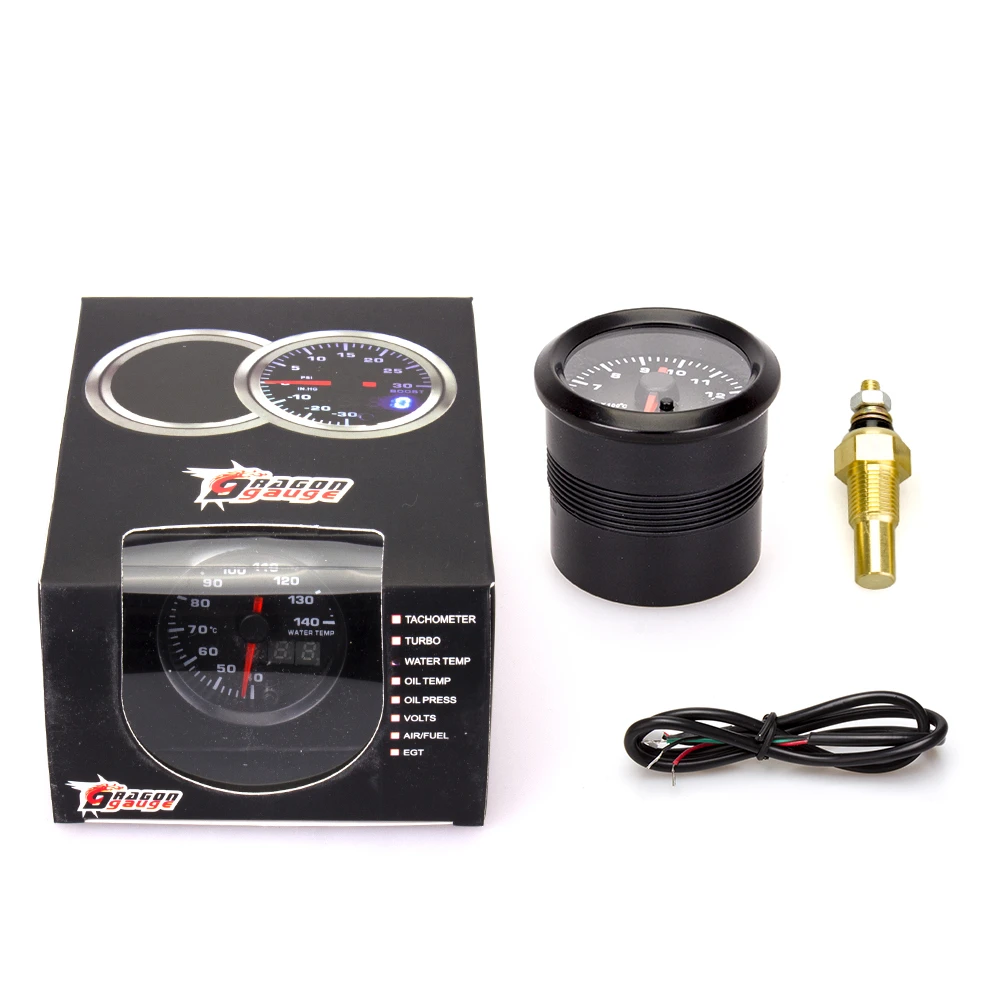

Water Temperature GaugeOil Temperature Gauge

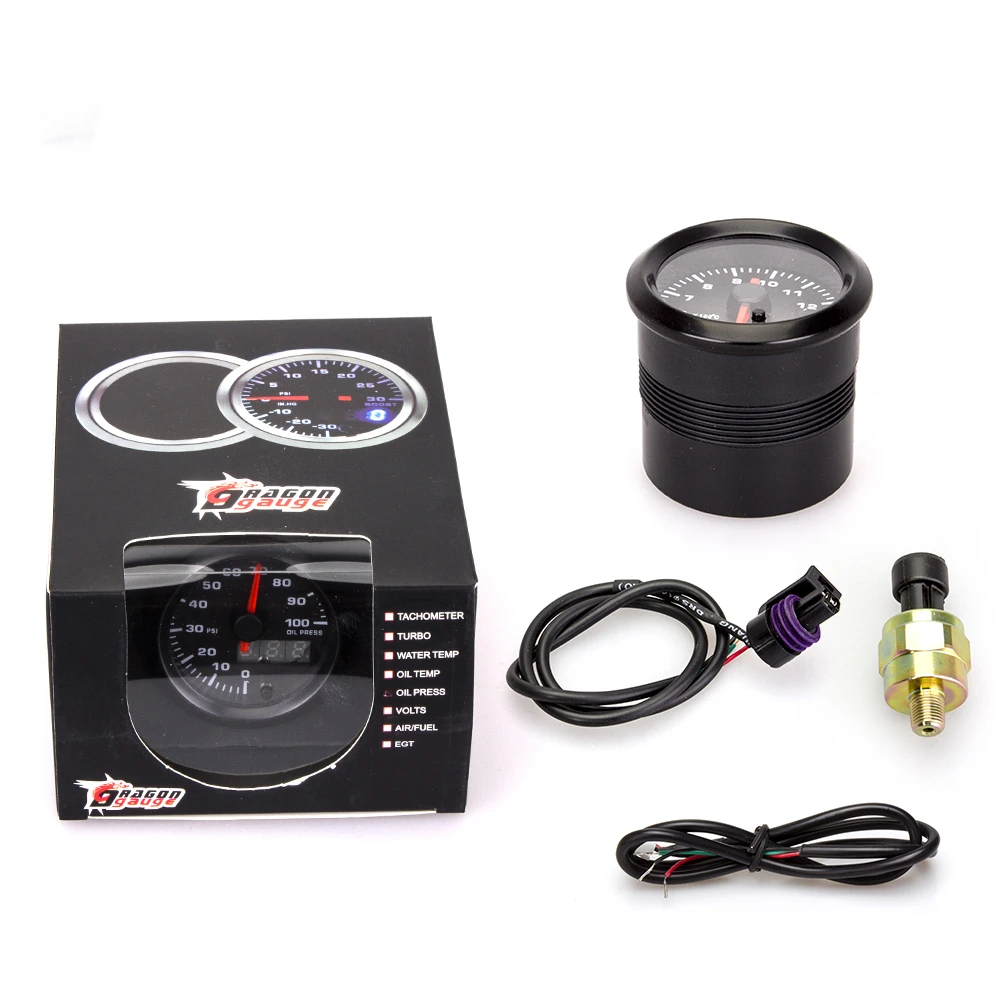

Oil Press Gauge

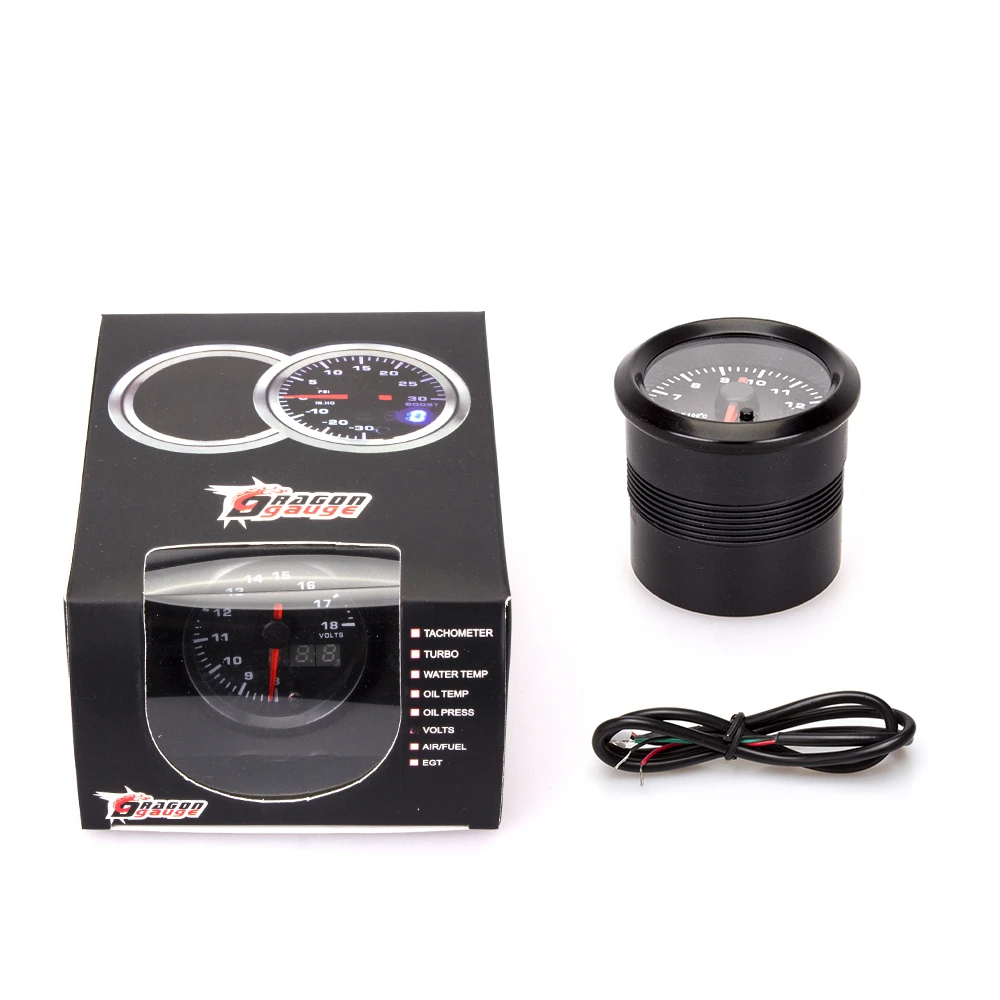

VoltmeterAir Fuel Ratio GaugeExhaust Temperature Gauge
