Continue shoppingHaltech Nexus S2 ECU Only
Increments of 1
Minimum of 1
Maximum of
333Low stock
333In stock, ready to ship
Sale price
Dhs. 8,877.23
-100%
Regular price
Regular price
Dhs. 8,877.23
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Suits: Engines with up to 4 cylinders or up to 2 rotors. Racing applications where advanced race features and data logging is required.
Includes: Nexus S2 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.
ECU OVERVIEW

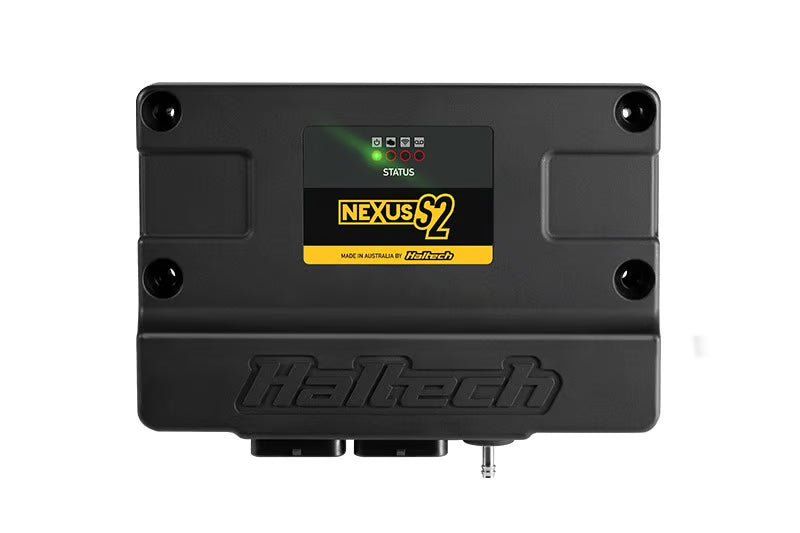

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
- 4 x peak/hold injector drivers (can be used as low side drive outputs)
- 4 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
