SPECIFICATIONS

Brand Name: MUCAR

Certification: RoHS,CE,CCC

Communication Interface: OBD-II

Display: 5-Inch Tuch Screen

Electronic: No

External Testing Certification: ce

Hardware Version: NEW

High-concerned chemical: None

Is Batteries Included: No

Item Type: Engine Analyzer,Engine Analyzer

Item Weight: 100

Material: ABS Metal

Model Name: BT200 MAX

Origin: Null Null

Power (W): other

Software Update: Yes

Software Version: 2025

Special Features: Bluetooth,Wifi

Support Languages: English French German Spanish Italian Portuguese Japanese Russian Polish Turkish

Use: Not Telecommunication

Voltage: FOR 12V CARS

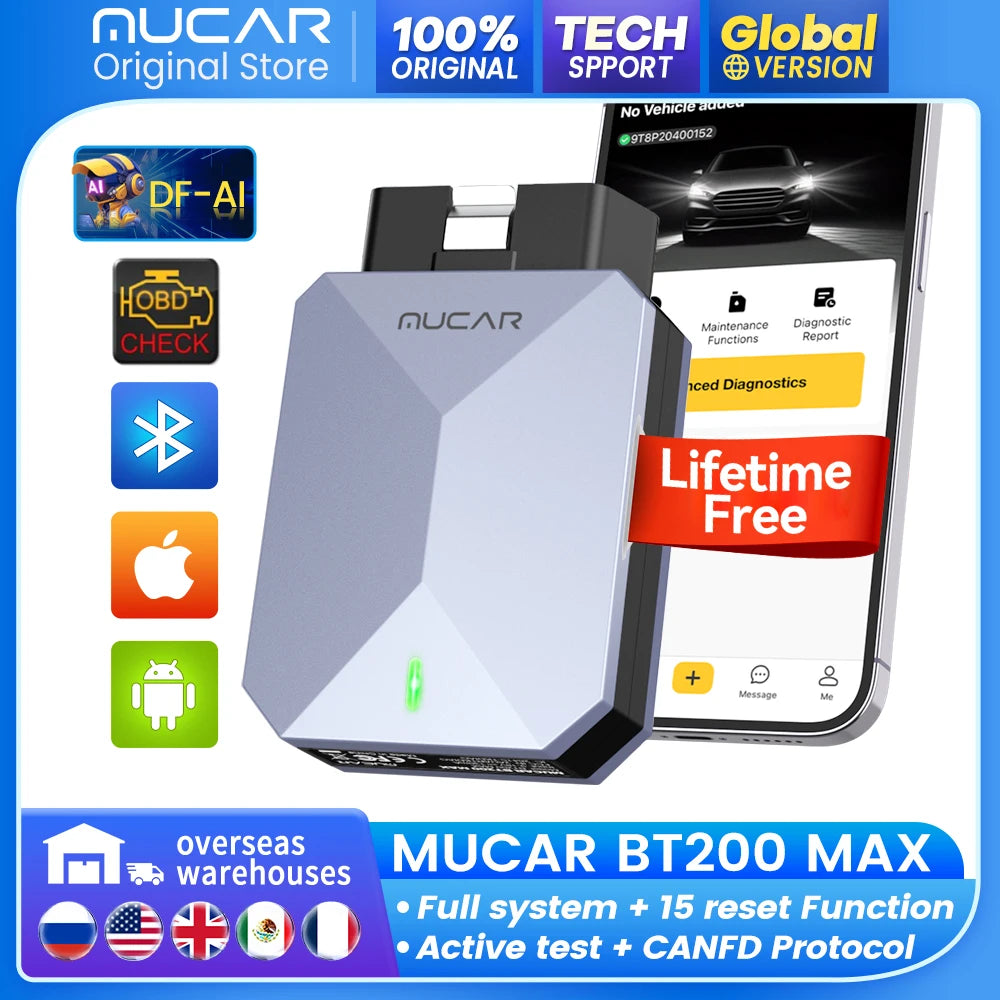

🏅2025 Newset Scanner Tool Full Software lifetime free update-- BT200 MAX

1️⃣Bluetooth 5.2,Android 5.0/IOS 13 or above

2️⃣Communication protocol: OBDII&EOBD universal protocol, CANFD,ELM327,GMLAN,MSCAN

3️⃣Full system diagnostic + 15 reset function + Active test (Bi-directional)

4️⃣Free APP Dollarfix APP,but Compatible with third-party apps

5️⃣Multilingual:English, Russian, German, Spanish. will gradually supplement other languages (Expected launch time for other languages: late August to mid September

6️⃣Support all vehicles from over 98% of brands

Note: Need buy FCA SGW account registration is required.

Full-Stack Automotive Fault Diagnosis and Analysis:

① Root Cause Analysis Engine: Leveraging knowledge graphs and causal inference technology, this engine provides in-depth analysis of potential and immediate causes of faults.

② Multi-Dimensional Repair Guidance Engine: Generates a structured, actionable repair recommendation process (including priority assessment).

③ Circuit Diagnosis Module: Provides comprehensive circuit system inspection specifications, test point location, data standards, and diagnostic logic.

④ Component Testing Module: Provides precise guidance on key component inspection methods, performance parameter determination criteria, and failure mode identification.

⑤ Deep Data Fusion Analysis: Combined with detailed circuit diagrams, this module enables visual collaborative analysis from macro systems to micro components.

⑥ Case-Driven Intelligent Recommendations: Intelligently matches similar fault case libraries to provide real-world reference solutions.

⑦ Maintenance Strategy Optimization: Provides preventive maintenance instructions (PMIs) tailored to specific faults, reducing the risk of recurrence.

⑧ Parts Replacement Decision Support: Based on diagnostic conclusions, this module provides clear technical support and selection recommendations for replacement parts.

Free Full OBDII Functions

*-Read extensive current, pending and permanent codes in OBD system quickly

*-Clear detected fault codes and turn off the Check Engine Light efficiently

*-View graphical live data of vehicle's computer module(s) for easy analyses

*-View the vehicle's operating parameters at the moment a DTC is detected

*-Read I/M readiness status to have a vehicle inspected for state emissions compliance

*-Perform O2 sensor test to check fuel efficiency and vehicle emissions

*-Read the results of on-board diagnostic monitoring tests for specific components/systems

*-Retrieve the vehicle information of VIN, CINs, and CVNs completely

*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

MUCAR BT200 Max supports EML327, GM-LAN and Ford-MSC proprietary vehiclenetworks that provide access to thousands of additional parameters that are off-limitsto all other wireless OBD scanners.

MUCAR BT200 Max OBD2 scanner is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

GM: CANFD models

[2021][Chevrolet][Onix] CANFD6&14

[2021][Chevrolet][Tracker] CANFD6&14

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021][GMC][YUKON XL] CCMA

[2021][GMC][YUKON] CCMA

[2023][Chevrolet][Montana] CANFD6&14

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

[2021][Chevrolet][Onix] All systems

[2021][Chevrolet][Tracker] All systems

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] All systems

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performsfunctional tests,retrieves vehicle diagnostic informationsuch as trouble and event codes and live data for various vehicle control systems,such as ABS,SRS,Engine,Transmission,Brake System,Emission System,Fuel system,Light system,Wiper Systemetc.

ECM=Engine System

IC=Instrument System

ABS System=Antilock Brake System

SRS System=Air Bag Restraint System

TCM=Transmission System

BCM=Chassis System

EPS=Electric Power Steering System

EPB System=Electric Park Brake System

TPMS System=Tire Pressure Monitoring System

AC System=Air Conditioning System

Security System

IMMO System

ETC.

15 Reset Function lifetime free update

15 Resets service NOT universal for all vehicles, please check compatibility with seller by Sending Car brand, model and VIN number before purchase.

1.Oil Lamp Reset Service :allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB service: it is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service :allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF service : specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS service: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS service : makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming: the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding : ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9.Sunroof Reset:The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10.Suspension Reset:Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off

11.Gearbox Reset:Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.

12.AFS Headlamp Reset ：'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel

13.Injector Coding ：Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

14.Throttle Adaptation: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15.Gear Learning: The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

Active test (Bi-directional) lifetime free update

MUCAR BT200 MAX is a bi-directional scan tool with ECU codding ,allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle's controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That’s helpful for DIY mechanics, speeding up the troubleshooting process when it’s time to make repairs.Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle's related actuators

If the actuator is normal,without using the vehicle's controls,to get a significant boost in effectiveness:

[Turn on the radiator fan|Modulate the throttle|Open/close windows|Operate mirrors|Turn on/off the lights|Turn on/off the sound horn|Test door lock …]

MUCAR BT200 Max works with dozens of popular third-party apps such as"OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand,GaragePro,OBD Auto Doctor,OBD JScan,Dr. Prius,MotorData,AlfaOBD".

With third party apps, you can enable convenience features (including remote start and door lock/unlock) and change configuration on select models.

Note: many apps are currently available exclusively on Android; check with app provider to confirm compatibility.

(If the third-party app supports the ELM327 protocol, it can use the BT200 MAX connection to perform OBD related functions, depending on what functions the third-party app has)

"For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later

it covers 95% of car models available in the market including:

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

4 IN 1 Scientific Data Management:

1.Live Data Stream Graph&Record Data&Diagnosis Record Playback&Print Report

2.The professional vehicle scanner tool can scientific graph data,record data,play back data,freeze frame,and print reports.

3.In the real-time diagnosis process,important diagnosis information can be instantly stored in the memory,including reading of fault codes and frozen frames and real-time data streams.

4.After real-time diagnosis is completed,Diagnosis function record playback,the diagnosis information and process previously saved in the memory can be replayed to facilitate the analysis of various data information.

5.One-click generation of a diagnosis report after diagnosis will help users quickly solve problems,avoid blind maintenance, and save money/time.

Step1: Download the "Dollarfix" in the APP store or in Google Play store.

Step2: Open the Dollarfix APP, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.

Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

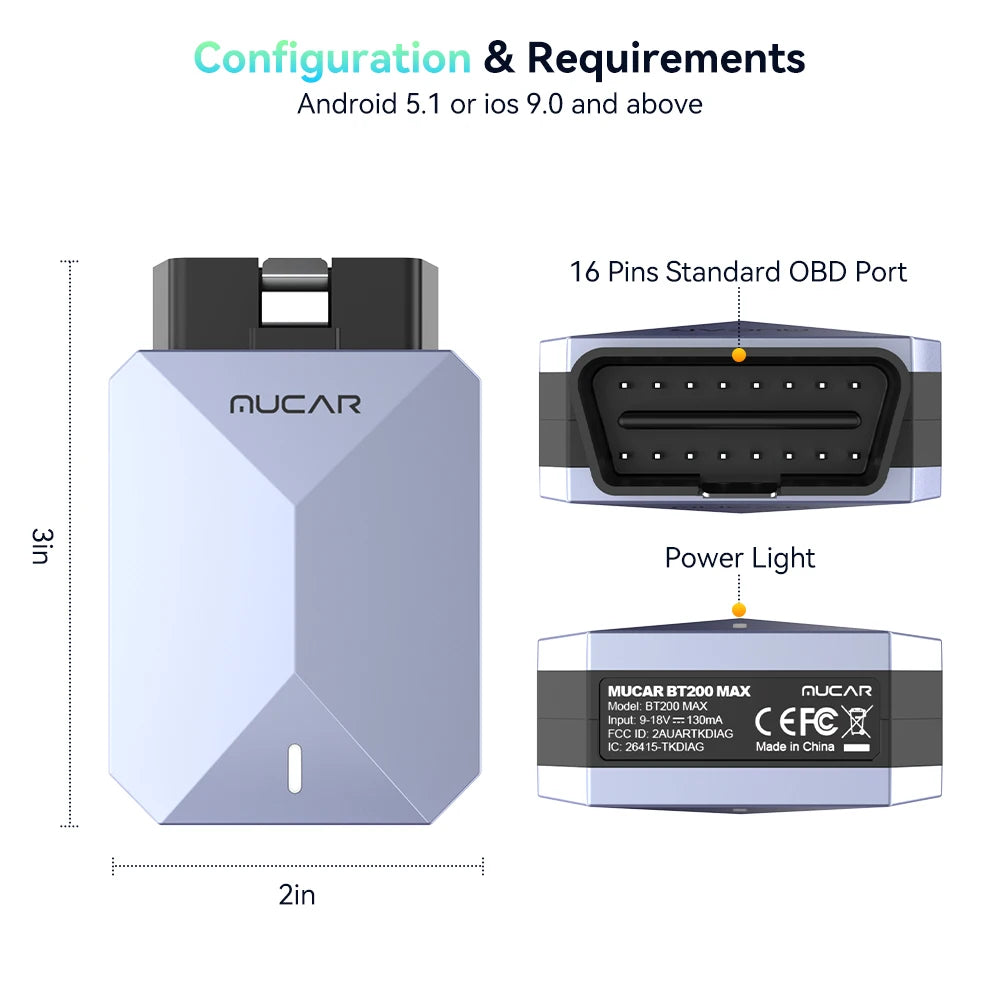

Step4: Plug BT200 MAX into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.

Step5: Open the Dollarfix APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.

Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic"and"OBD Functions".
