You can choose from the link:

CDE900 PRO+4 system, CDE900 PRO+ full system, CDE900 PRO+28 reset,CDE900+4system

(You can also buy CDE900/CDE900 PRO for matching,Highly Recommended Softwares Package, no Annual Fee)

MUCAR CDE900 Pro car scan tool provides optional software package to unlock more features.

1.Single model (full system, full function) for 59.95USD

2.Full model,Full System Diagnostics for 99.95USD

3.Single reset -15.95 USD

Lifetime free upgrade after purchase, no renewal fee

Tips: For those who purchase software options, please contact customer service after receiving the package to obtain the software T-codeLifetime Free Full OBD2 FUnctions for All Cars

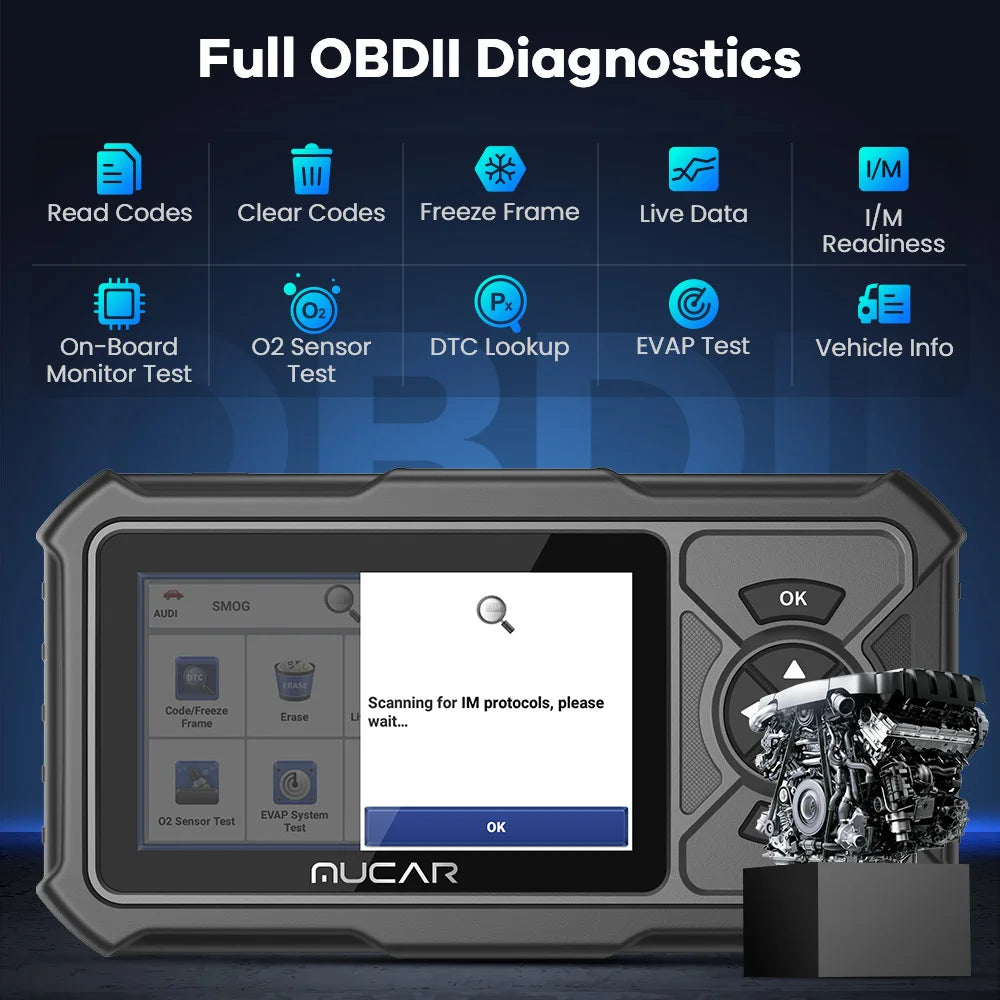

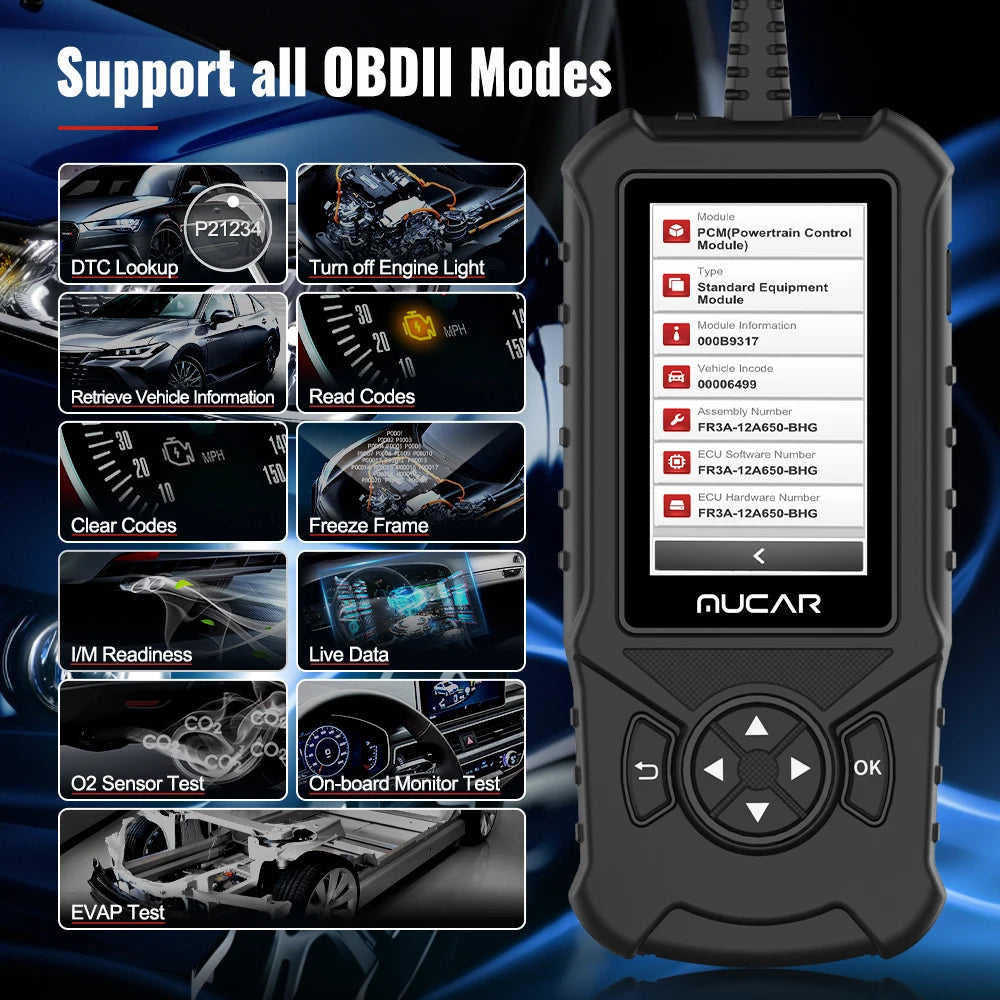

Read Codes—Request emissions-related diagnostic code
Clear Codes—Clear/reset emissions-related diagnostic information.
Live Data---Request current powertrain diagnostic data.4 data streams can be merged in 1 graph for easier comparison.
Freeze Frame—Request freeze frame information. Find the data at the time of the car failure.
O2 Sensor Test—Request oxygen sensor monitoring test results.
On-Board Monitor Test—Request on-board monitoring test results for specific monitored systems.
I/M Readiness—Request emission-related diagnostic trouble codes detected during current or last completed driving cycle
EVAP Test—Start the leak test of the vehicle's EVAP system (This tool does not perform the leak test, but sends a signal to the vehicle's on-board computer to start the test.)
One-Touch Auto VIN—Automatically identify the vehicle, and match the proper diagnostic software to run fast and precise car diagnostics.
DTC Lookup—Fault code library, you can inquire the cause of the car fault represented by the fault code with one key.

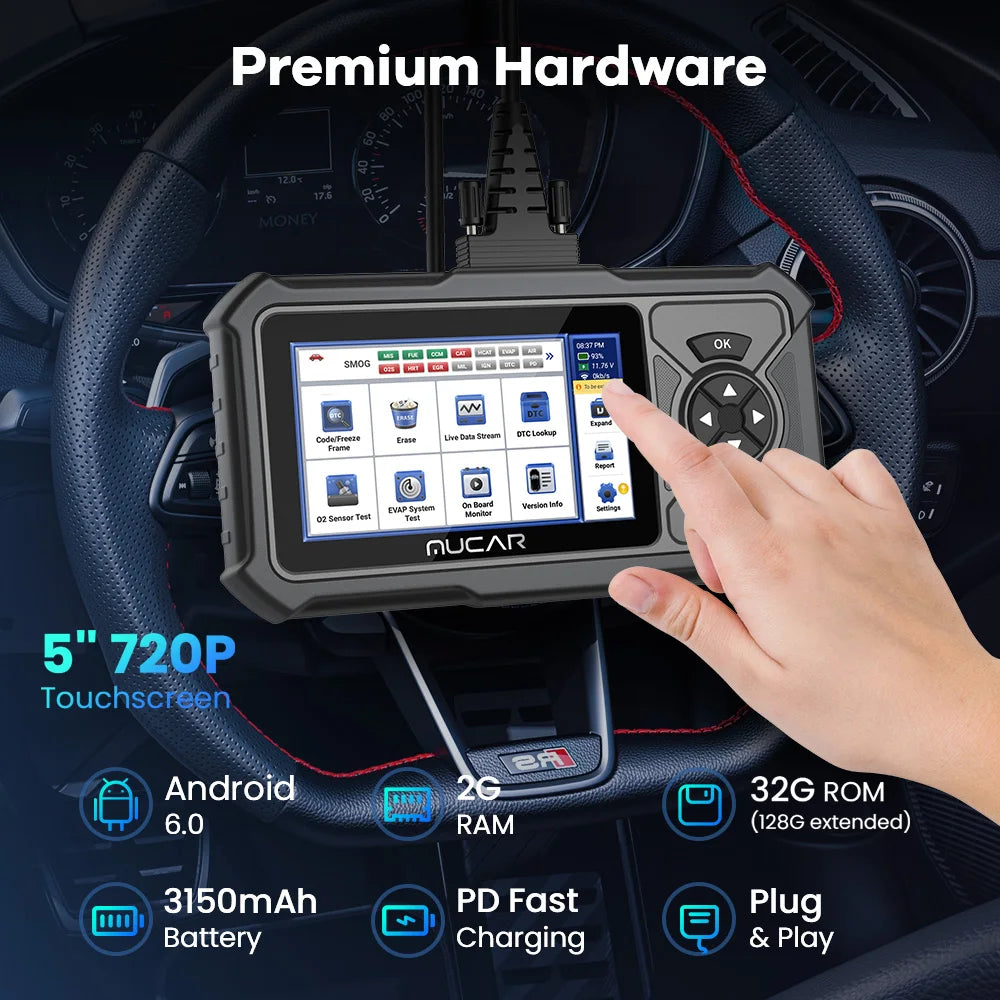

Big screen: 5-Inch Touch DH Display

Large memory: 2+32GB, Support TF Card:≤256G

Powered by battery: 3150MAH

Operating System : Android 6.0

Lifetime ree Update: One-Click Wifi Upgrade

21 languages menu supports: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Dutch, Hungarian, Slovak, Greek, Romanian, Slovenian, Croatian, Polish, Traditional Null, Arabic, Korean, Turkish Czech, CzechMUCAR CDE900 PRO Support All Systems Diagnostics:

This option allows you to detect whether the system parameters are normal or not.

Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, ect...

Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.

1.ECM (Engine System) Diagnose

You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.

2.ABS (Anti-lock Braking System) Diagnose

By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.

3.SRS (Airbag) Diagnose

By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.

4.TCM (Transmission System) Diagnose

AT is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. MUCAR CDE900 PRO obd2 scanner can read/clear codes and view live data retrieve the error information from AT.MUCAR CDE900 PRO (28 Special Service Function):

*Not all vehicles support all reset functions. For example, ODO reset and IMMO key programming can only be used for some models. Please send vehicle model and year to customer service for inquiry.

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.

b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it

is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.Support 106+ Car model

MUCAR CDE900 Pro Support Wide vehicle coverage and is compatible with 98% of all car models from the US, Europe, and Asia.

ISO 14230-4（KWP2000）

ISO 15765-4（CAN）

ISO9 141-2（iso）

ISO 14229（uds）

SAEJ 1850（VPW&PWM)

- America:

Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM

- Europe:

AstonMartin, Benz, Sprinter, BMW, Ferrari, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Jaguar, Lambor Ghini, ALFA ROMEO, BENTLEY, BUGATTI, DR, DACIA, EUROFORD, GAZ, IVECO, IZH, JAGUAR, MERCEDES, MAYBACH, OPEL, OPEL(SOUTH AFRICA), PAZ, RENAULT, ROVER, ROLLS-ROYCE, SPRITER, UAZ, VAZ, VAUXHALL, ZAZ

- Asia:

Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion, IKCO, LUXGEN, MAHINDRA(INDIA), MARUTI(INDIA), MAHINDRA(INDIA), MARUTI, MVM, NISSANGTR, PERODUA(MALAYSIA), PROTON(MALAYSIA), PERODUA, PROTON(MALAYSIA), RENAULT SAMSUNG, SAIPA, TATA(INDIA), TATA, TLISUZU, UNITED PAKISTAN

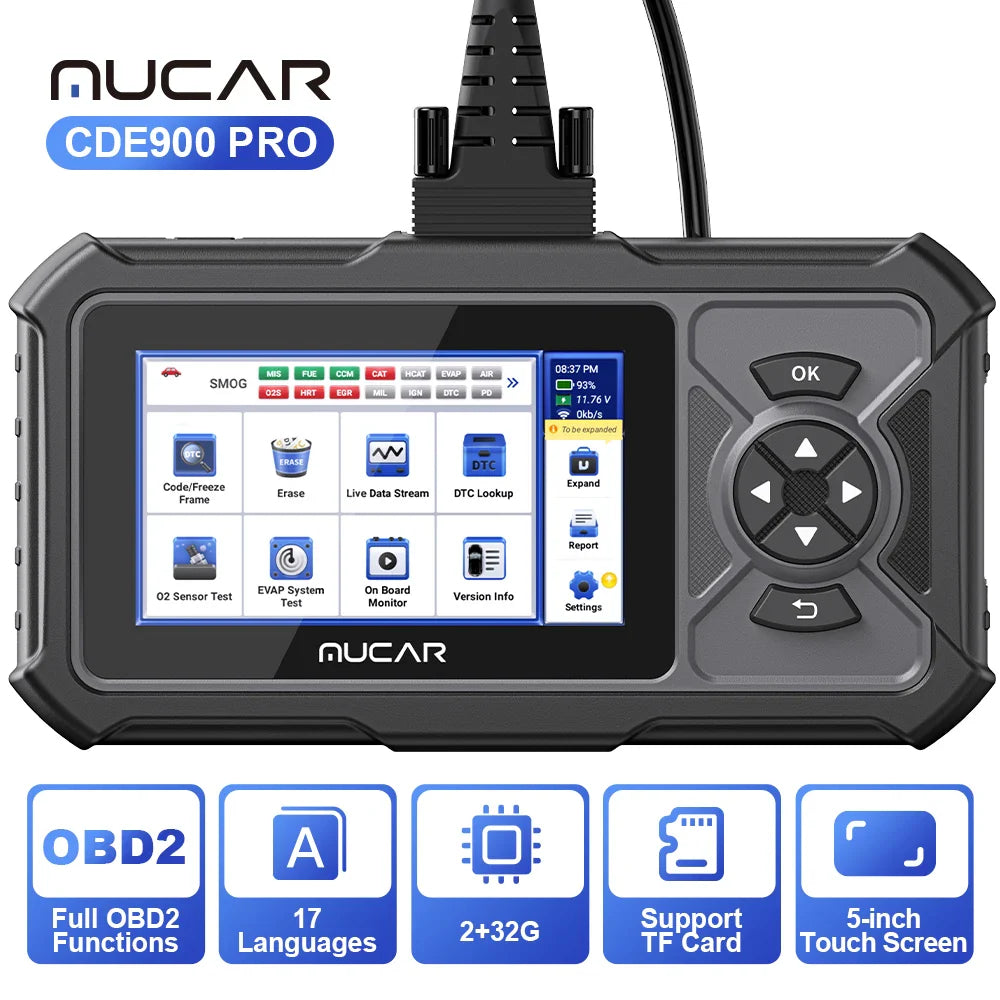

Product Details

1. Power/screen lock button

2. 5-Inch display

3. Diagnostic line interface

4. Charging Port/TF card Slot

5. Reset Button

6. Confirm Button

7. Up, down, left, right switch keys

8. Return KeyMUCAR CDE900 Car Diagnostic Tool

1. Lifetime Free Full OBD2 Functions

2.Extra Fee:

$79.95 for all 28 reset service lifetime free, no annual fee

3. Large Memory: 32 ROM Support TF Card:≤256G

4.One-click Auto VIN technology, automatically identify the brand, model and year; quickly match the car diagnostic software.

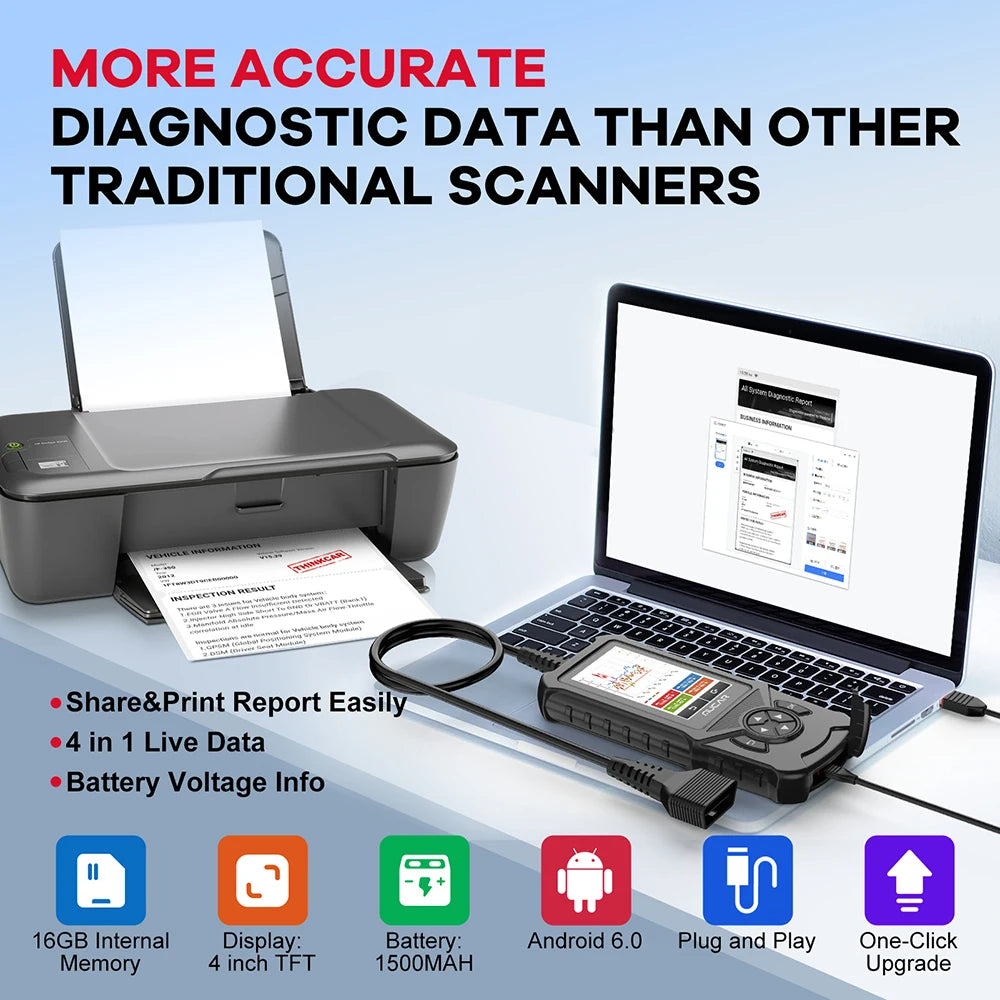

5. Automatically generate diagnostic reports; share via email. DTC lookup library.

6. Android 6.0 system; logically laid out interface; 4-inch touchable LCD, 720P clear and easy to read;

7. Support 16 languages:

English French German Italian Spanish Portuguese Japanese Russian Dutch Hungarian Slovak Greek Romanian Slovenian Croatian PolishHow to Upgrade CDE900 systems:

1. Connect to Wifi (Slide down the home page)

2. Click on "Setting"

3. Enter "Upgrade"

4. Select APP (upgrade to the latest version)Lifetime Free Full OBD2 Functions

ENHANCED FULL OBDII/ EOBD DIAGNOSTICS

This obd2 scanner possesses full obd2 functions. Read Codes, Erase Codes, MIL Fault Indicator Light, Live Data, EVAP System Test, On-Board Monitor Test, View Freeze Frame, O2 Sensor Test, Vehicle Info, I/M Readiness, DTC Code Look-up, for all OBD2 compliant vehicles.

Abarth, Acura, Alfa Romeo, Astion Martin, Audi, Baic Senova,Baic Weiwang, Baic, Bentley, Brilliance, Bugatti, Buick, Cadillac, Chery, Chevrolet, Chrysler, Chsuzuki, Citroen, Dacia, Daewoo, Daihatsu, Dodge,

Euro Ford, Ferrari, Fiat, Ford, Gaz, GM, Gonow, GWM, Hafei,Haima,

Honda, Hyundai, IKCO, Infiniti, ISUZU, IVECO, IZH, JAC, Jaguar, Jeep, Jinlong, JMC, Joylong,

Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Luxgen, Lynkco, Mahindra, Maserati, Maxus, Mazda, , Mitsubishi,Mvm, Nissan, Nissan GTR, Opel, Paz, Perodua, Peugeot, Polarsun, Porsche, Proton, ,

Renault Samsung, Renault, Rover, SAAB, Saipa, Seat, Seaz, SGM, Skoda, Smart, Spark, Sprinter, Subaru, Suzuki, Tata, Toyota, UAZ, Vauxhall, VAZ, Venucia, Volkswagen, Volvo, VW_CV, YQMazda, ZAZ,

MG (Saic)

Opel (South Africa)

GM (Brazil),Fiat (Brazil),

Holden (Australia) , Ford (Australia)

Proton (Malaysia), Perodua (Malaysia)

Mahindra (India), Maruti,Maruti (India),Tata(India)

For Null Cars

CHBuick(Null Buick), CHCadillac(Null Cadillac), CHChevrolet (Null Chevrolet), Toyota(Null),

Faw (Tianjin), NJFiat(Nanjing), Honda (Dongfeng), DFFG(Dongfeng FG), DFNissan(Dongfeng Nissan), DFSK(Dongfeng SK), DFCitroen(Dongfeng Citroen),DFPeugeot(Dongfeng Peugeot), Honda (Gac), Mitsubishi(Gac), Changan, ChanganFord, BYD, Changhe,

Note: ECUAID(Other Null brands choose 'ECUAID' to enter diagnosis)
