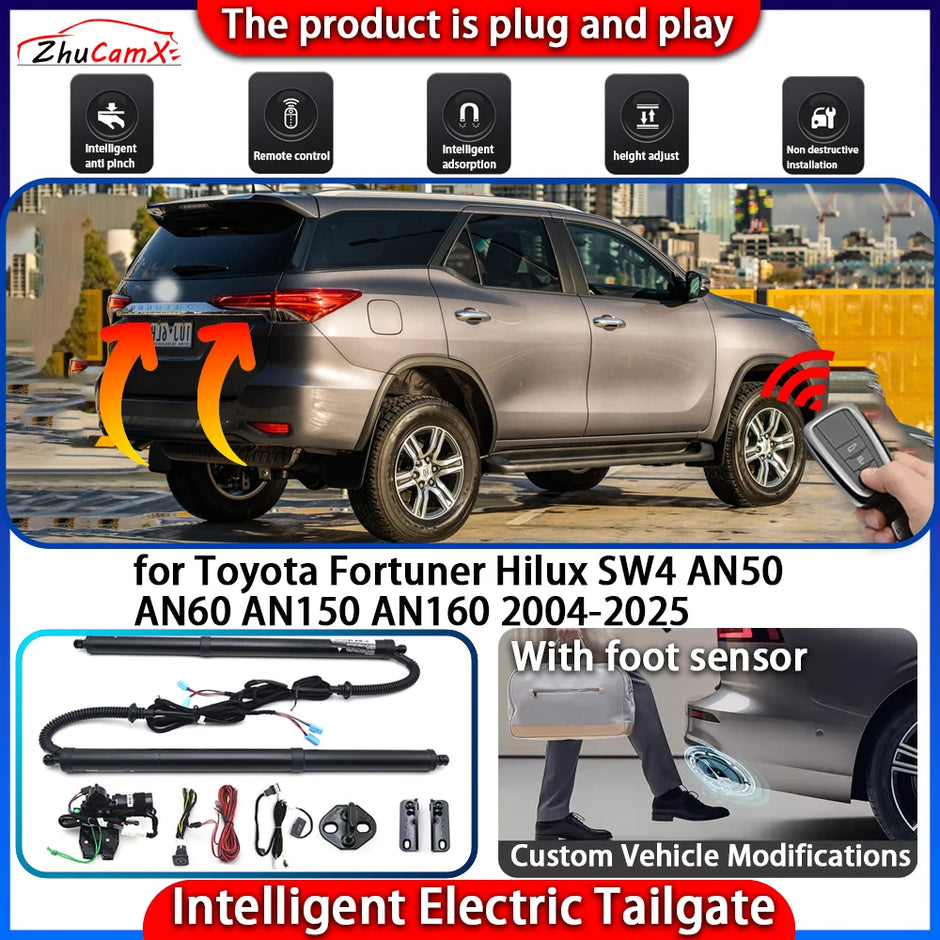

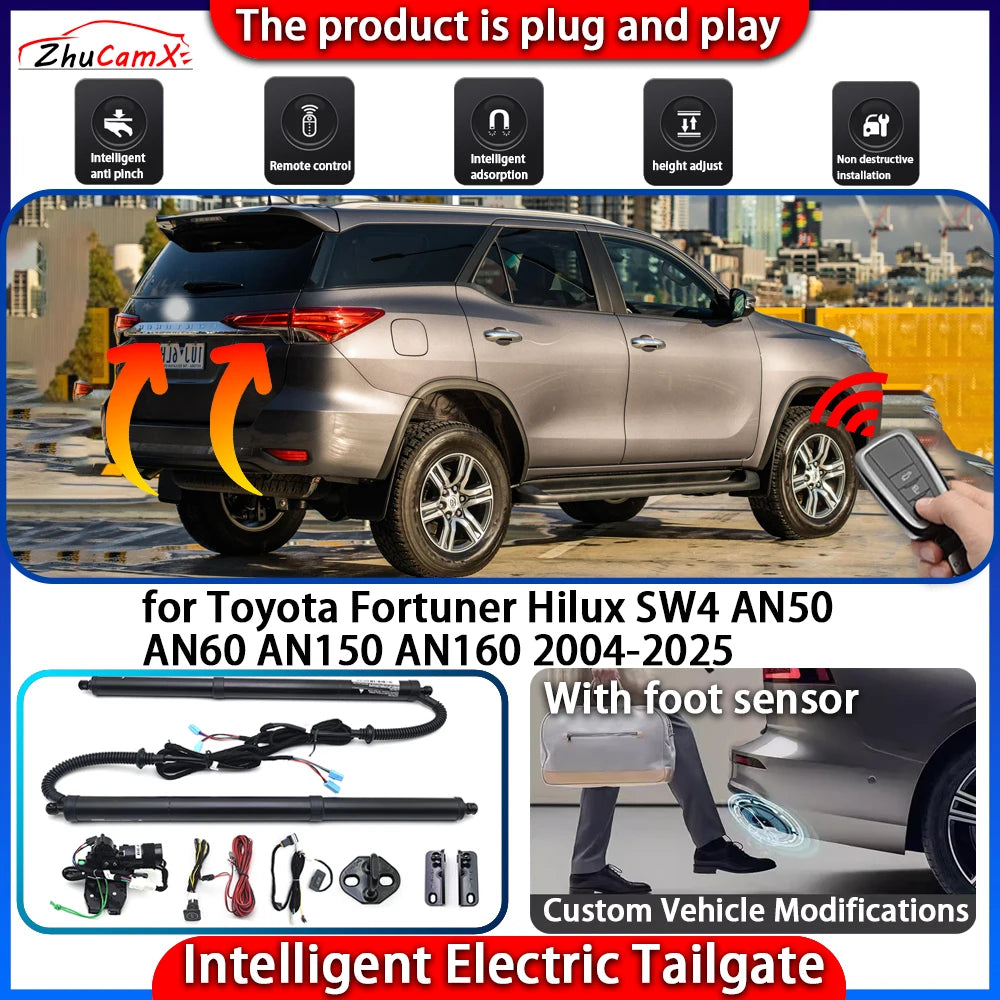

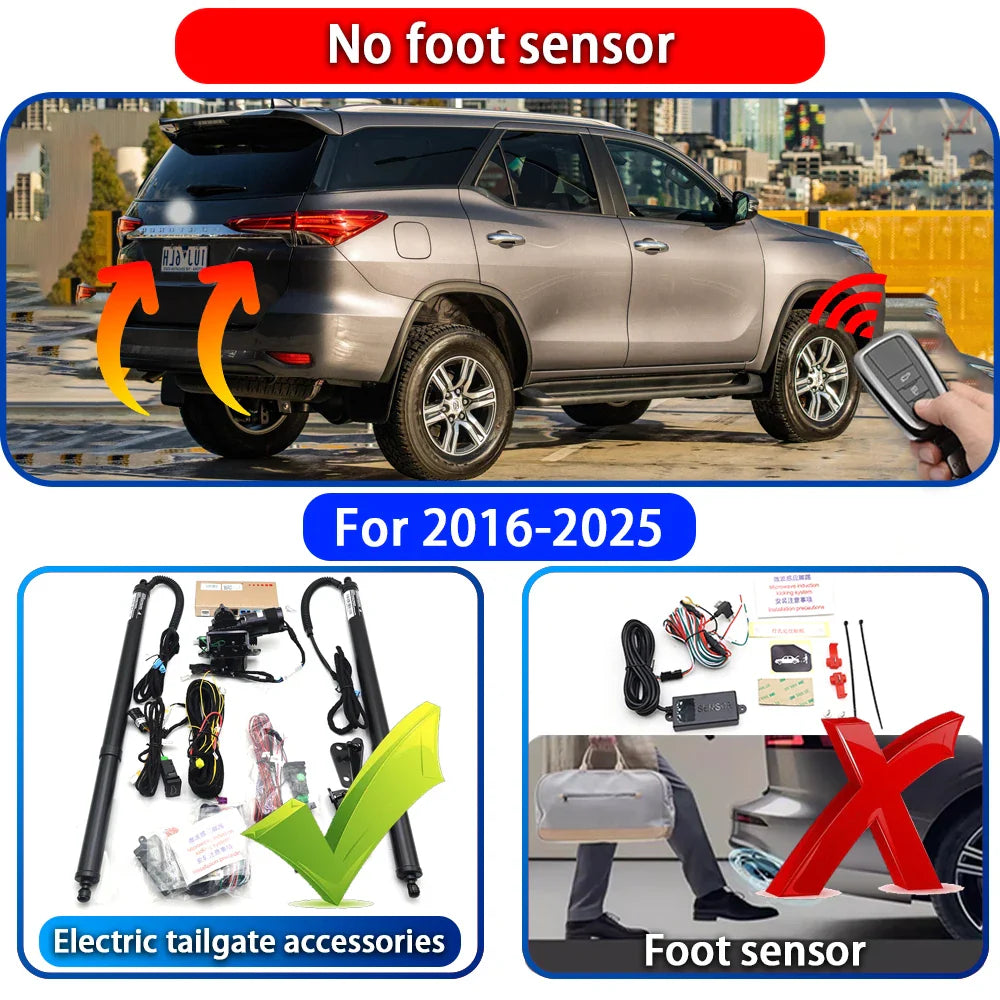

Smart Powered Tailgate System for Toyota Fortuner Hilux SW4 AN50 AN60 AN150 AN160 2004-2025
200Low stock
200In stock, ready to ship
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
SPECIFICATIONS
Brand Name: ZhuCamX
Certification: CE
High-concerned chemical: None
Suitable car models:

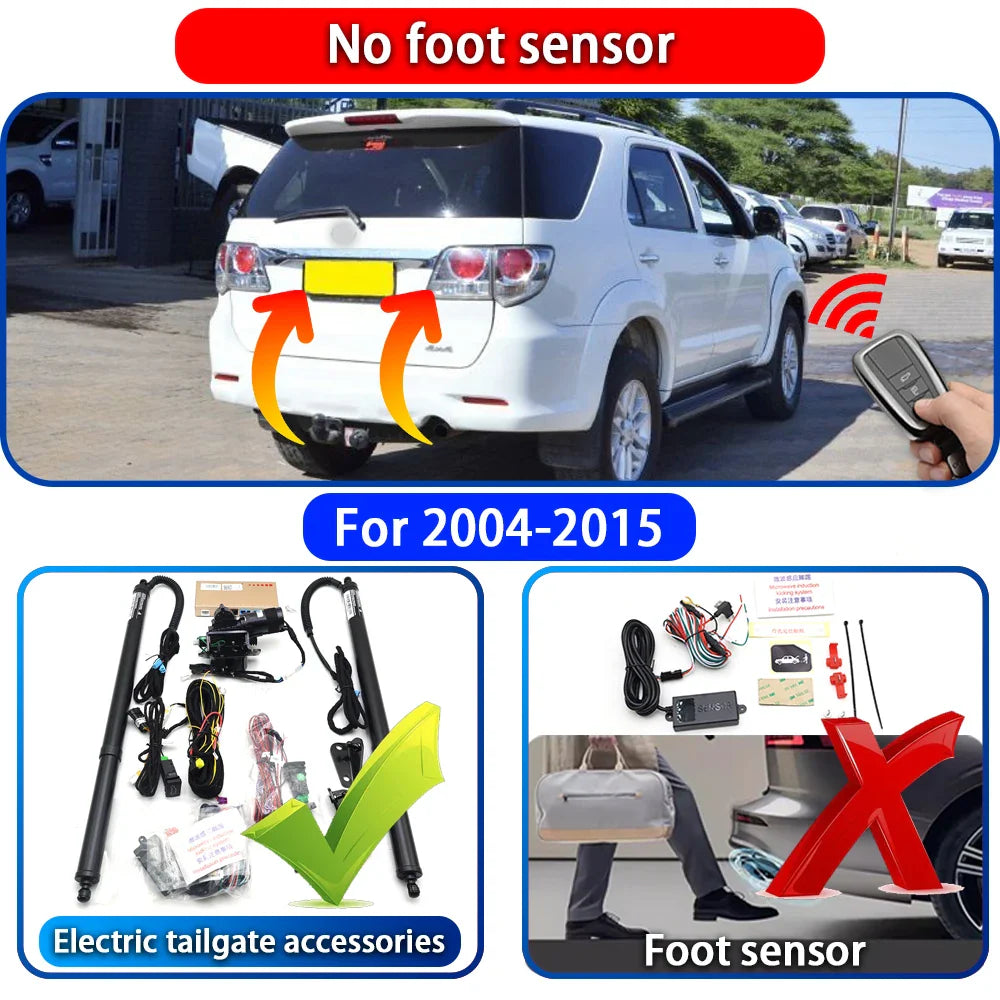

for Toyota Fortuner AN50 AN60 2004–2015
for Toyota Hilux SW4 2004–2015
for Toyota SW4 2004–2015
for Toyota Fortuner AN150 AN160 2016–present
for Toyota SW4 2016–present
Note:
After placing the order, please contact customer service to send your car model and year. Also, please take a photo of the rear of the vehicle for easy verification of the model. Thank you
Note:
When purchasing this product, an installation manual will be sent. Don't worry about installation issues, please rest assured to place your order!
Multiple switch control modes
The tailgate can be remotely opened and closed through the driver's cabin button, tailgate button, original car rear button, and original car key button
1. Original car key control
No need to modify the original car key and data, no programming required, and can be used directly after installation
2. Cab button control
3. Rear tailgate button control
4. Foot sensor senses opening and closing (optional)
5. Main door button control (supported by some models)
6. Control of the rear buckle switch of the original vehicle

Powerful reasons to choose our product
New flagship product
Comprehensive upgrade of core configuration
1.3 independent control: faster and more accurate algorithm
2. IPX8 waterproof level: not afraid of rainy weather
3. Super strong motor: low power consumption, silent, strong power
4. Stable operation under heavy load: even with the addition of a tail wing, there is no fear
5. New power-off hovering technology: dual damping brake stop, extending motor life
6. Dual axis stable structure: Carbon structural steel wire rod with excellent mechanical properties
7. One click 6-speed speed regulation: free control of lifting speed
8.5000 life tests: Newly upgraded and more stable

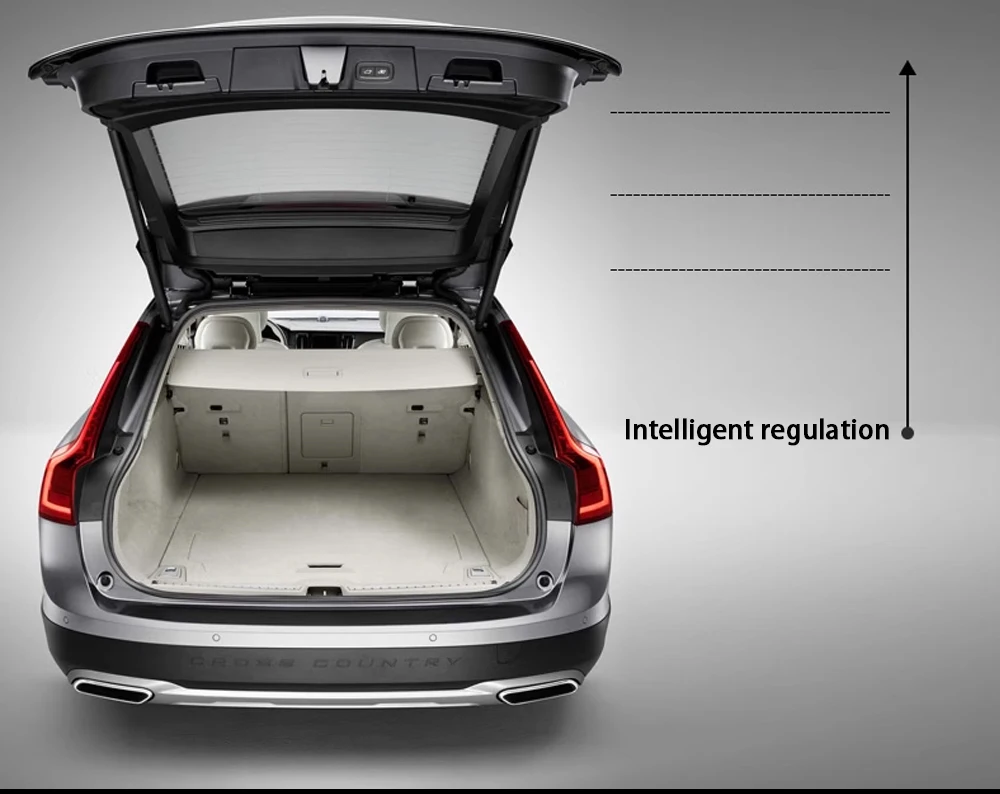

Intelligent height adjustment
Set the tailgate to any height with just one click, and customize the height to suit your height, making it convenient for people of different heights

Intelligent anti pinch and anti-collision
When the tailgate is closed and encounters an obstacle, it will automatically stop running and then open the tailgate, effectively preventing injury and protecting personnel safety. It is safer and more reassuring to use the car

Smart Electromagnetic Auto-Lock
The 1:1 design of the electric suction lock automatically attracts and locks the tailgate when it is closed, making it safer and more convenient

Abnormal alarm, safe and considerate
If the tailgate is not tightly closed or encounters obstacles during the opening and closing process, a "beep beep" sound warning will be issued to remind the car owner to close the door properly

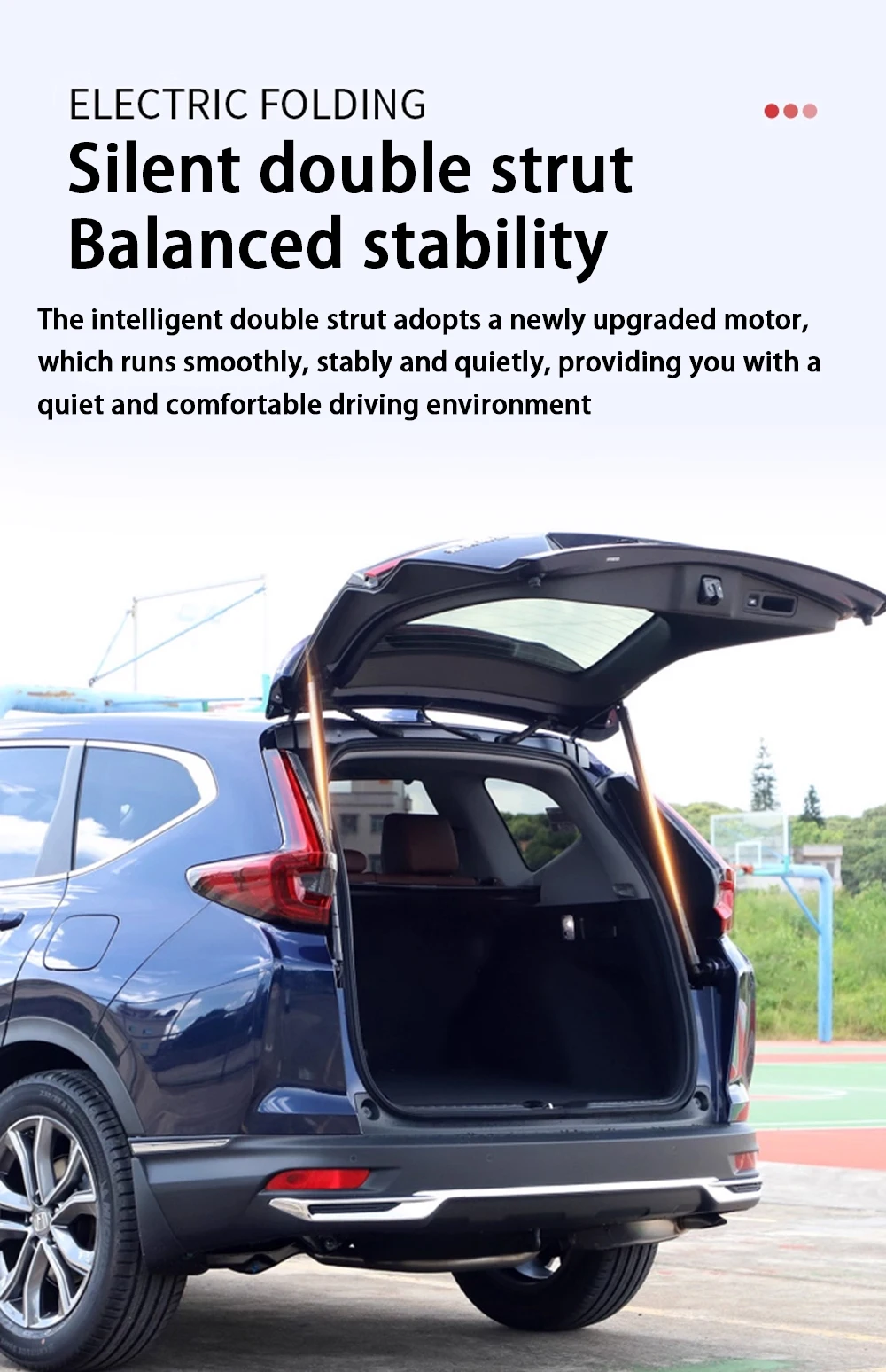

Silent double strut
Balanced stability
The intelligent double strut adopts a newly upgraded motor, which runs smoothly, stably and quietly, providing you with a quiet and comfortable driving environment

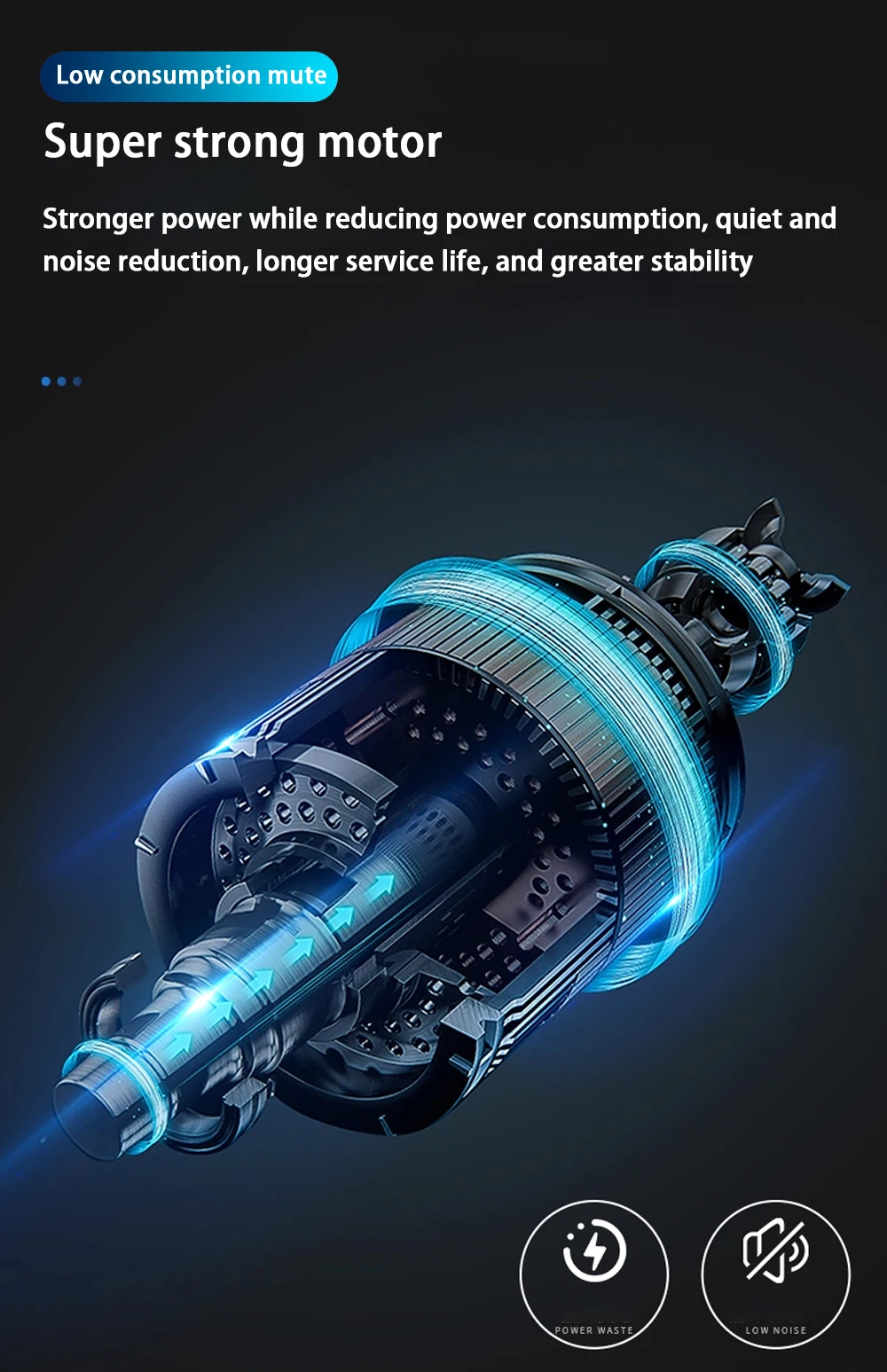

Super strong motor
Low consumption mute
Stronger power while reducing power consumption, quiet and noise reduction, longer service life, and greater stability

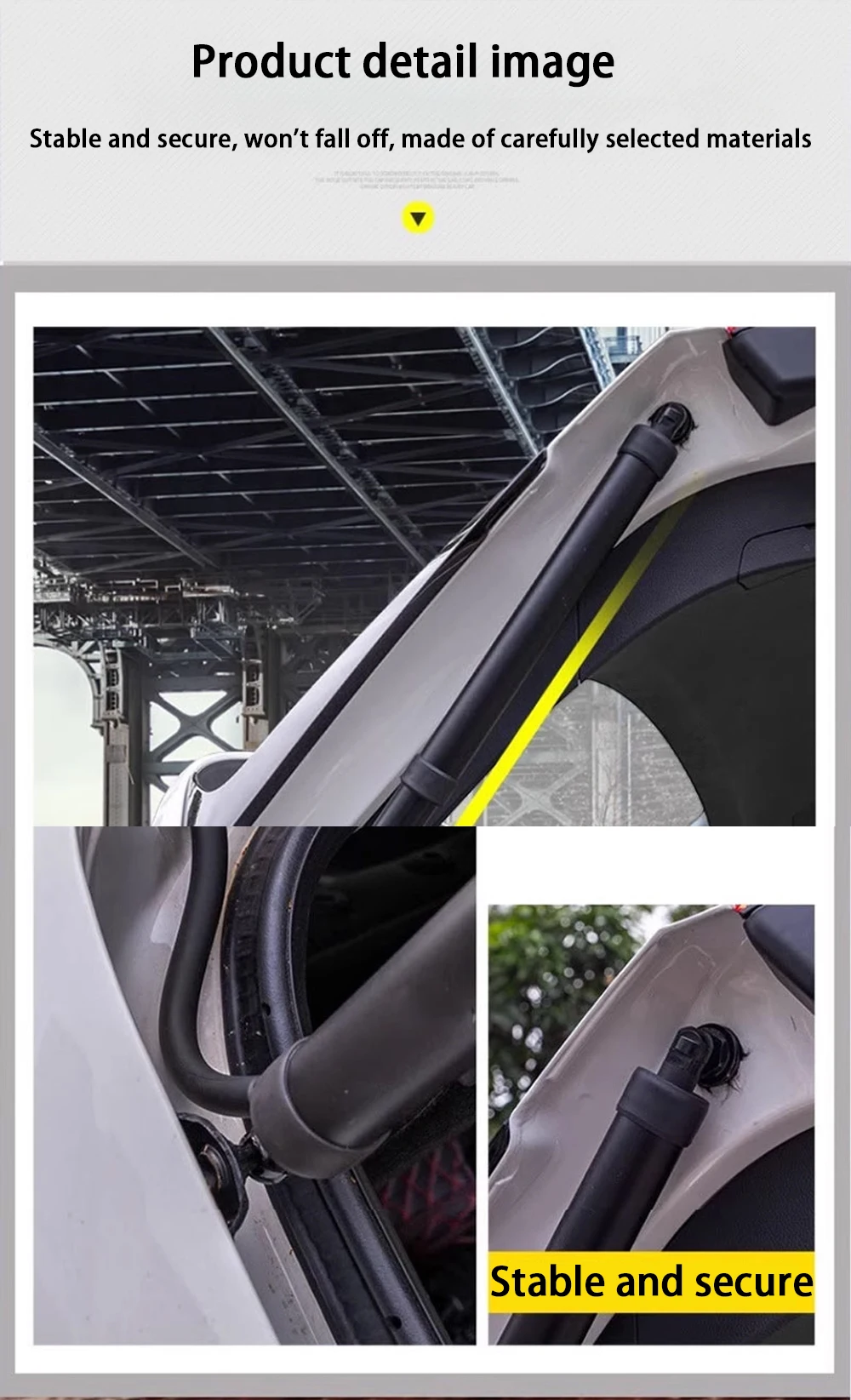

Product detail image
Stable and secure, it won't fall off, made from carefully selected materials

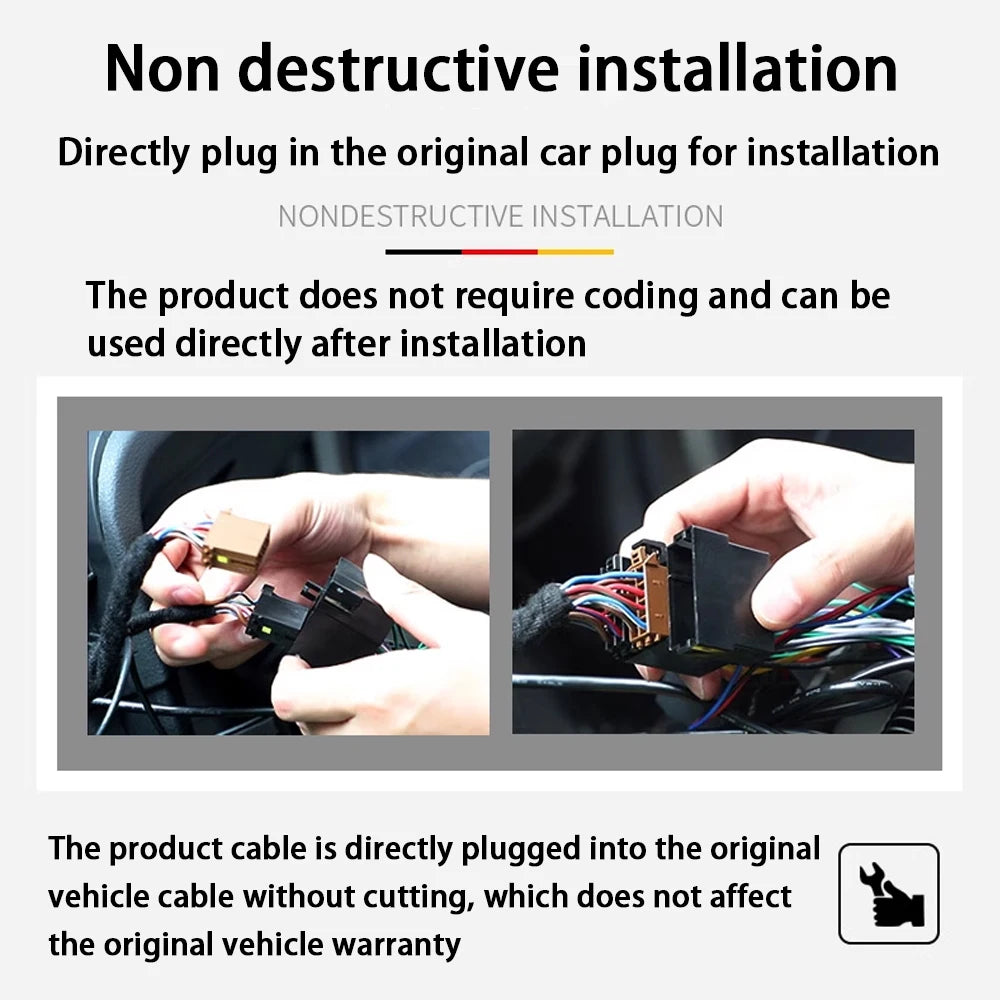

Non destructive installation
Directly plug in the original car plug for installation
The product does not require coding and can be used directly after installation
The product cable is directly plugged into the original vehicle cable without cutting, which does not affect the original vehicle warranty

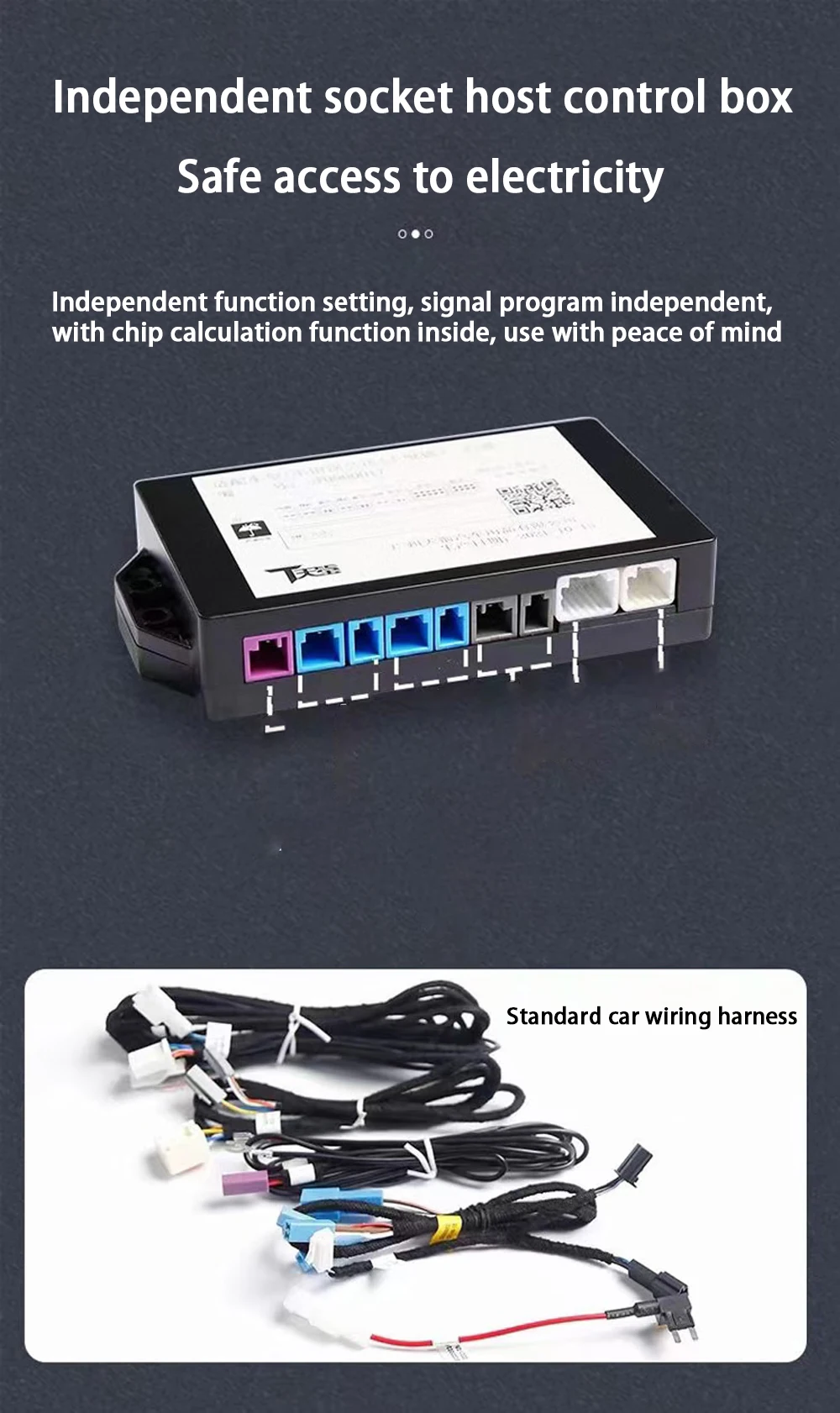

Independent socket host control box
Safe access to electricity
Independent function setting, signal program independent, with chip calculation function inside, use with peace of mind

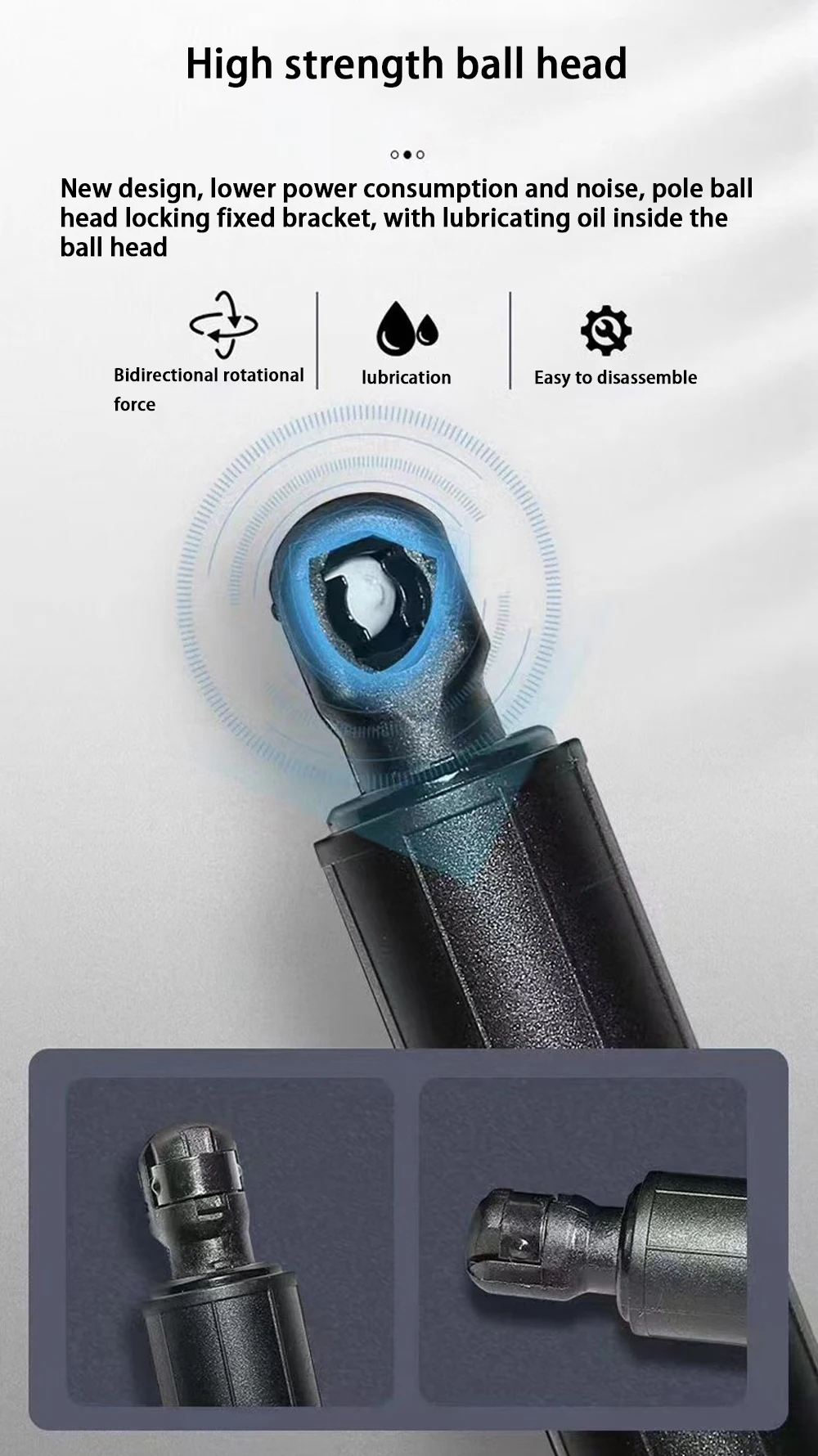

High strength ball head
New design, lower power consumption and noise, pole ball head locking fixed bracket, with lubricating oil inside the ball head

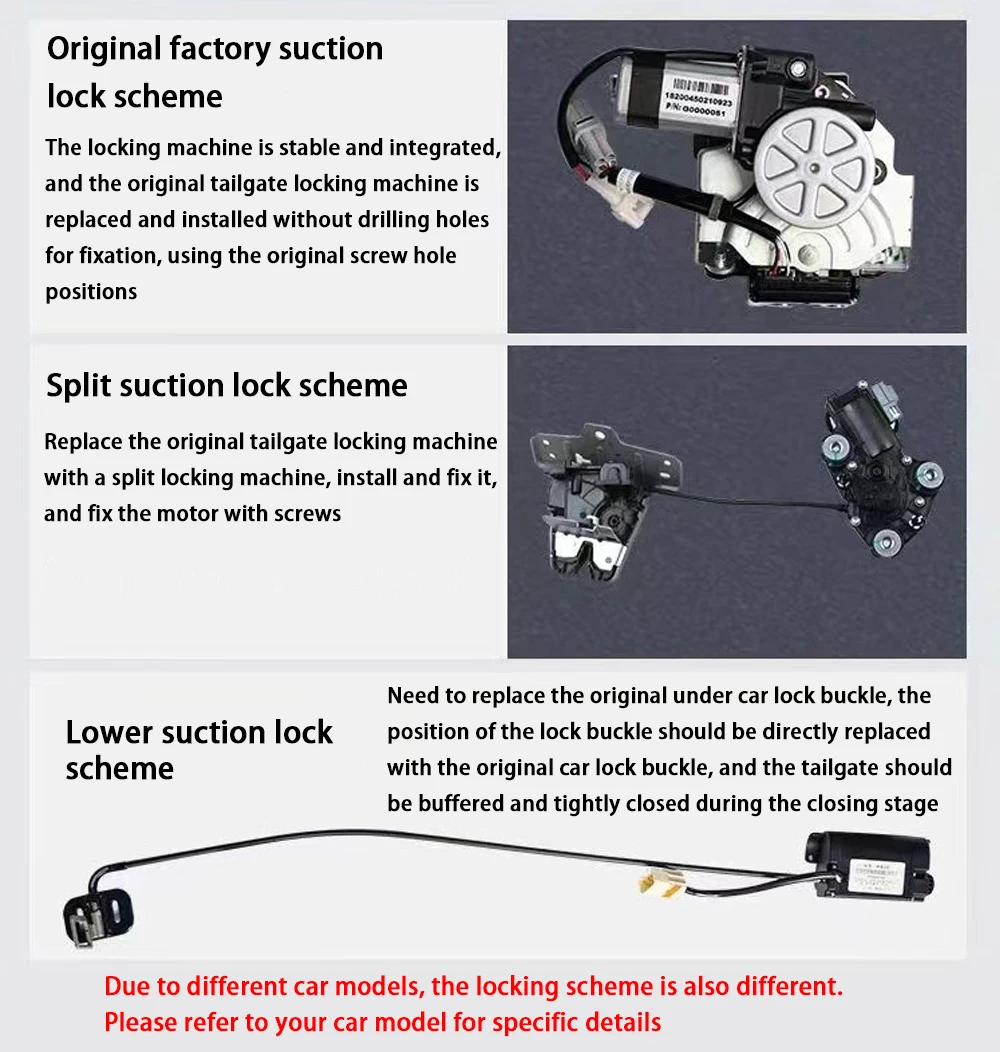

Customized original car lock
Original factory suction lock scheme
The locking machine is stable and integrated, and the original tailgate locking machine is replaced and installed without drilling holes for fixation, using the original screw hole positions
Split suction lock scheme
Replace the original tailgate locking machine with a split locking machine, install and fix it, and fix the motor with screws
Lower suction lock scheme
Need to replace the original under car lock buckle, the position of the lock buckle should be directly replaced with the original car lock buckle, and the tailgate should be buffered and tightly closed during the closing stage
Due to different car models, the locking scheme is also different. Please refer to your car model for specific details

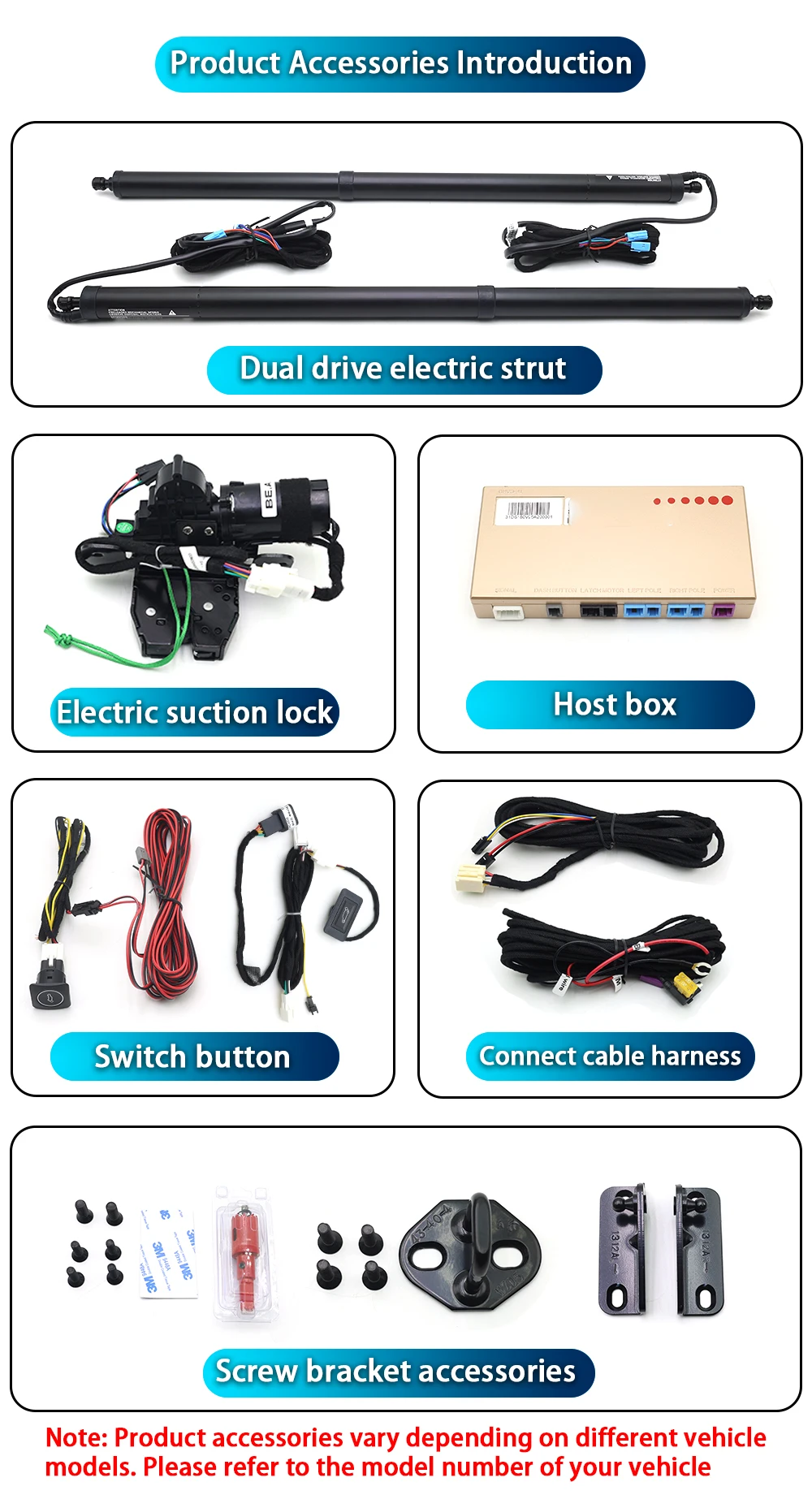

Product Accessories Introduction
Note: Product accessories vary depending on different vehicle models. Please refer to the model number of your vehicle

Parameters:
1 Core electrical parameters
Working voltage and current
Voltage range: typically 9V~16V DC (suitable for automotive 12V electrical systems)
Static current: ≤ 100 μ A in sleep mode (low-power design to prevent battery depletion)
Drive current:
Pole motor: Normal 15A, transient 30A (ensuring high torque output)
Tailgate lock motor: up to 25A5.
Response speed:
Wake up time:<100ms~200ms (quick response command)
Tailgate opening and closing time: fastest 4 seconds (efficient operation)
Communication and Control Interface:
Support CAN/LIN bus communication, with a speed of up to 500kbps (to achieve integration with the entire vehicle system)
Compatible with remote key, Bluetooth 3.0, and mobile app control (such as the third-generation UNI-V)
2 Mechanical and structural parameters
Sports performance:
Bilateral balance algorithm: By independently controlling the electric strut motors on both sides, ensure smooth opening and closing of the tailgate
Opening and closing angle: supports custom memory (such as setting commonly used angles of 60 °~70 °)
bearing capacity
Ground door bearing capacity: such as the Dongfeng Nano 06 sky and earth tailgate design, capable of carrying over 150kg (can be used as a camping platform or seat)
Space adaptability: The tailgate opening height can be adjusted to accommodate users of different heights
3 Intelligent control features
Induction method: Foot kick sensor: 2.4GHz frequency detection, requires effective scanning and kicking action (non accidental touch), supports rain prevention and false triggering.
Multi control: supports voice assistant (Xiaomi SU7), smartphone seamless unlocking (third-generation UNI-V)
Adaptive function
Speed adaptive: For example, UNI-V's iEM system can adjust the tailgate opening and closing strategy according to road conditions
Location memory: automatic positioning after user preset height
4 Safety protection parameters
Anti pinch protection
Anti pinch force:<100N (automatically rebounds when encountering obstacles)
Double detection: anti pinch strip physical induction+motor speed monitoring (real-time adjustment of torque)
Fault diagnosis and protection
Support overcurrent, overvoltage, overtemperature, and open circuit diagnosis
EMC protection level Level 4 (anti electromagnetic interference)
Emergency protection mechanism
Emergency stop switch (manual forced interruption)
Protection against violent operations (to prevent damage to mechanical structures)
