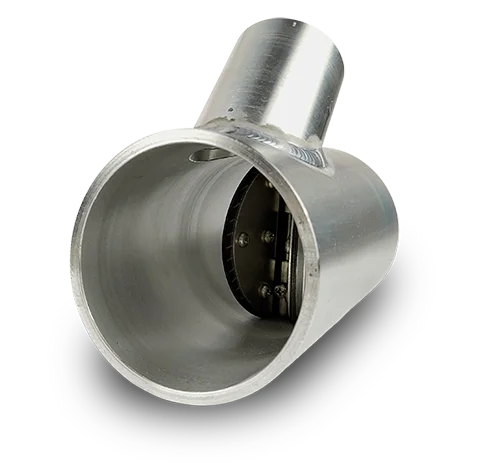

Name: TORQAMP Bypass valve (for electronic turbo)
Brand: Droppi
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

0Low stock

0In stock, ready to ship

Sale price Dhs. 0.00 -100% Regular price

Regular price Dhs. 0.00

Unit price / per

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share: Link copied!

Get notified by email when this product becomes available

Your email

Have a question?

Name

Phone

Reference URL

Write message

Description

Essential for big engines

The TORQAMP Bypass valve is used on high mass flow applications.
On Turbocharged engines the TORQAMP can be used to spoolup the turbo and eliminate the turbo lag. The bypass valve is used to prevent restriction and facilitate high flows.
On engines with a displacement larger then 3 litre and revving up to 6000 or 7000 RPM, the Bypass valve facilitates easy and high flow. The TORQAMP increases the torque of the engine, and when the flow over the engine increases more, the Bypass valve facilitates easy flow.

The Bypass valve can also be used to prevent restriction in case the TORQAMP kit is switched OFF. The bypass valve allows the engine to breath naturally.

Implementation

The Bypass valve is designed for easy integration . It can be placed directly between air filter and intake manifold or before the air intake tube from the turbo charger. It can even be welded on intercoolers inlets or outlets.

One can decide to place the bypass before or after the turbo compressor in the intake. The valve will open automatically when the engines’ massflow increases.

Before the turbo

NOTES - We can take this note out. Its not needed in this context or part of the page. This could be a good note at the page where we suggest a setup for a small engine. - We don’t recommend to turn the compressor at low TPS values because you can simply add more air into your engine by opening the throttle valve. This will also drain your battery a bit. Take for example at 75% TPS signal a slow rotating compressor and at 100% TPS signal a fast rotating compressor.  
- Boosting at low air mass flow will damage the TORQAMP compressor due to the surge phenomena.
