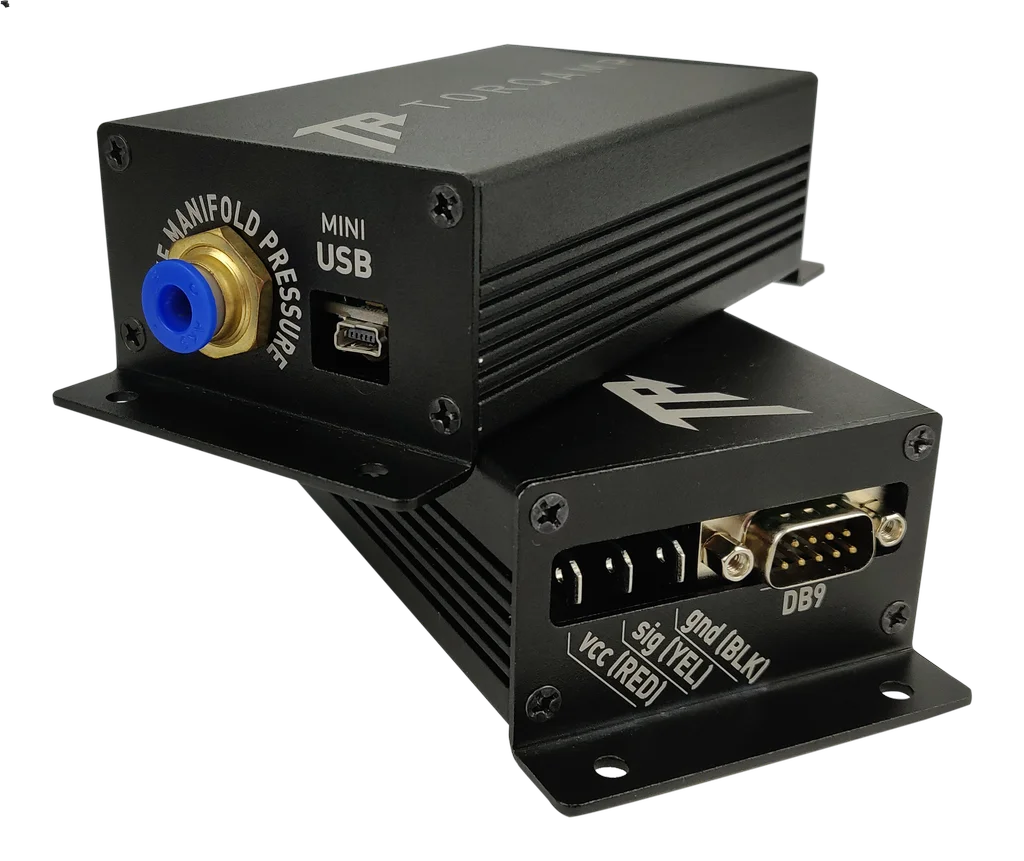

Torqamp Control Box

Name: Torqamp Control Box
Brand: Droppi
Price: 1350.0 AED
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

0Low stock

0In stock, ready to ship

Sale price Dhs. 1,350.00 -100% Regular price

Regular price Dhs. 1,350.00

Unit price / per

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share: Link copied!

Get notified by email when this product becomes available

Your email

Have a question?

Name

Phone

Reference URL

Write message

Description

Meet the

Control Box

Control your Torqamp in a more flexible way

Optimize your Torqamp

Get your Torqamp to work on automatic mode

Our Open-source Control Box can be used to optimize the TORQAMP specially for your application. You can connect TPS, a PWM signal and or your intake manifold pressure as input signals and program the settings yourself. If you are not able to program the board, no worries, we have some standard settings/ programs that you can download.

Also for those who like to custom

On a naturally aspirated engine, the Control box allows you to play with the boost simply by using your throttle pedal. It reads out the throttle position sensor (TPS) and regulates the boost based on the throttle position. The Control box also offers advantage with a large turbo build by measuring the turbo lag. In this case you also have to connect the Control Box pressure sensor to the intake manifold of your engine. The TORQAMP will spool up the large turbo and when the turbo produces enough pressure the TORQAMP will decrease in speed. This results in a much more responsive engine and a huge torque gain at the lower engine rpm.

In addition you connect the hose to the intake manifold to measure the pressure.
The TPS value will now provide a boost setpoint you want to achieve as boost in your intake manifold (for example 40kPa = ~6psi boost at 75% TPS). When you hit the 75% throttle position the TORQAMP will spool up till the pressure is achieved. When the turbo takes over the boost pressure the TORQAMP will spool down.

When you run with an Open-ECU but don’t have an analog output, you probably have a PWM output available. If your have any experience with programming open ECU’s you can write your boost map in the Open-ECU based on your own parameters. The PWM output is converted by the Control Box to a speed setpoint for the TORQAMP.

Implementation

The way you want to use the Control Box is highly depending on your implementation of the TORQAMP.

Naturally Aspirated boosting

When you have a TORQAMP on your naturally aspirated engine and you want to control the speed of the compressor with your throttle pedal.

Cars are already equipped with TPS sensors for decades, so it is easy to tap into this singal and directly connect to the Control Box.

You only have to connect 4 wires from your car:

GND from battery
12V (extra nice to take a switched one from your car radio)
GND from TPS sensor
Signal from TPS sensor

This is the easiest way if you want to control the boost based on the throttle position.

In the software you can find a table which links the input of the TPS to the compressor speed.

NOTES - We don’t recommend to turn the compressor at low TPS values because you can simply add more air into your engine by opening the throttle valve. This will also drain your battery a bit. Take for example at 75% TPS signal a slow rotating compressor and at 100% TPS signal a fast rotating compressor.
- Boosting at low air mass flow will damage the TORQAMP compressor due to the surge phenomena.

Turbo Builds

The TORQAMP will work great with large turbo builds. It spools up the turbo at much lower engine RPM’s providing a huge torque gain.

For this we developed Boost Control. Boost control is an additon on TPS control.

You only have to connect 4 wires from your car:

GND from battery
12V (extra nice to take a switched one from your car radio)
GND from TPS sensor
Signal from TPS sensor

In addition you connect the hose to the intake manifold to measure the pressure.

The TPS value will now provide a boost setpoint you want to achieve as boost in your intake manifold (for example 40kPa = ~6psi boost at 75% TPS. When you hit the 75% throttle position the TORQAMP will spool up till the pressure is achieved. When the turbo takes over the boost pressure the TORQAMP will spool down.
